627-5W1 Series
Manufacturer: EDAC Inc.
Catalog

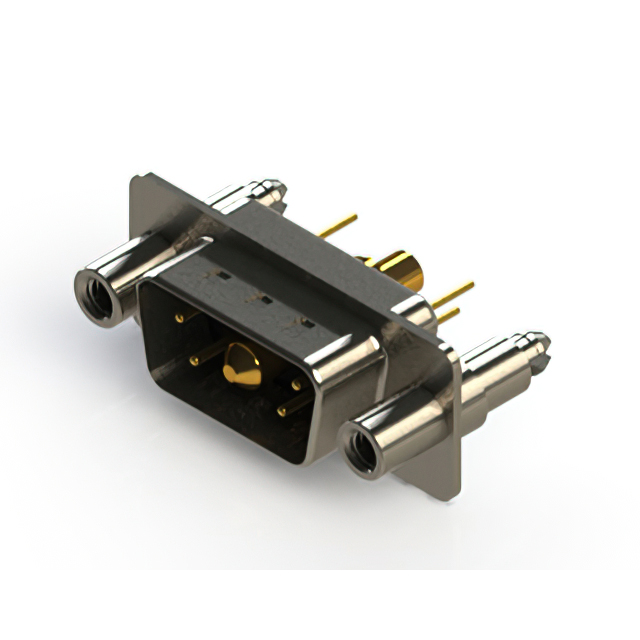

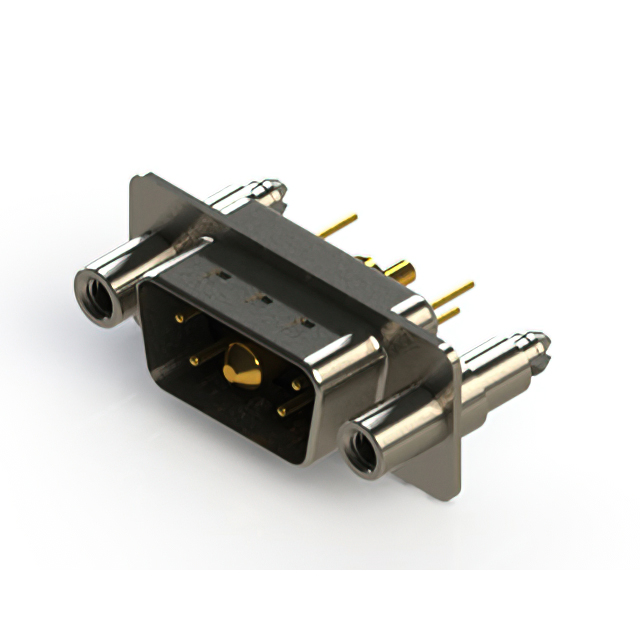

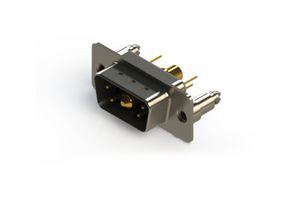

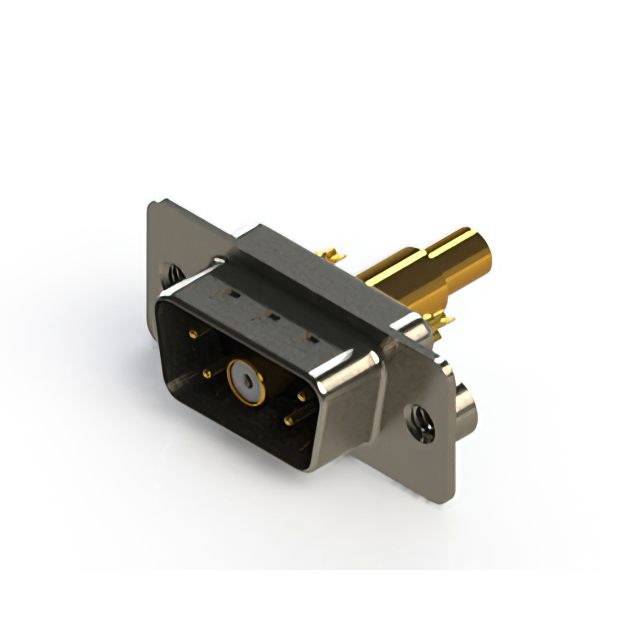

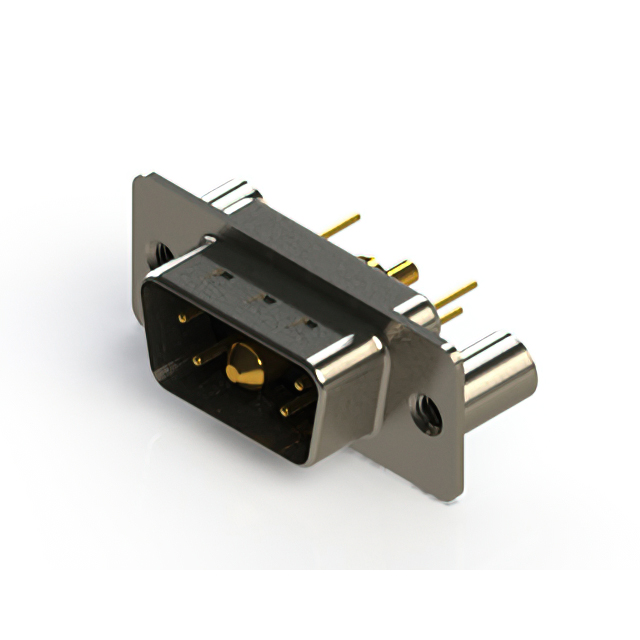

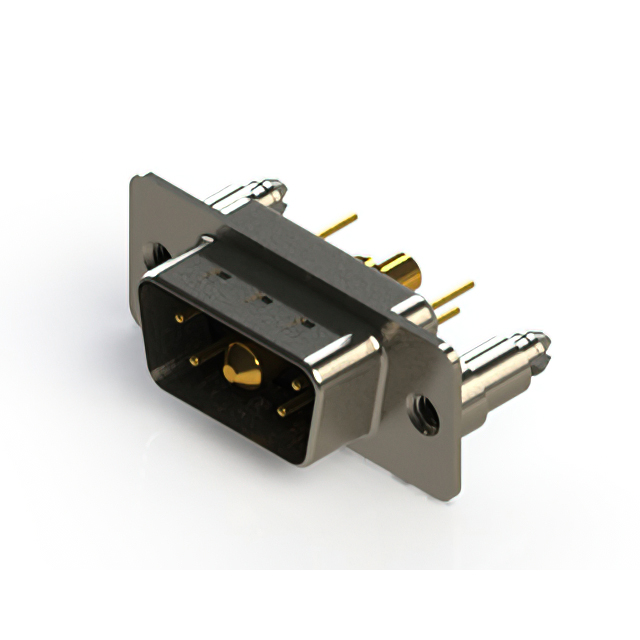

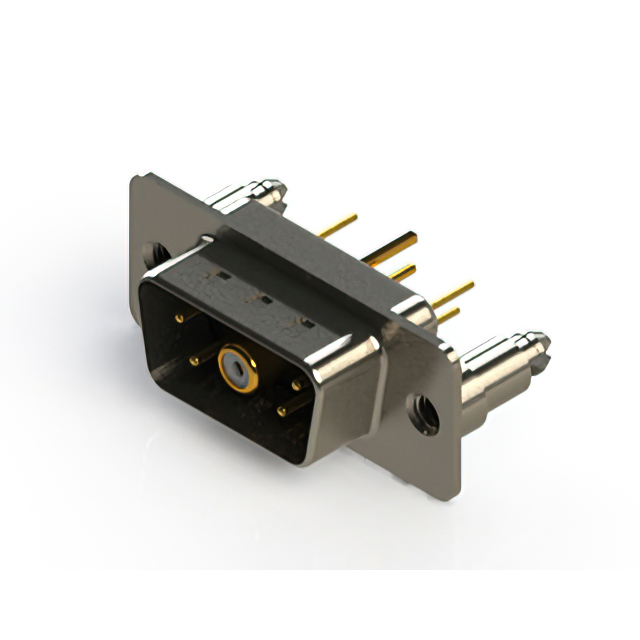

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DE-5W1, PLUG, 5 CONTACTS, 4 SIGNAL, 1 POWER
...
| Part | Dielectric Material | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Flange Feature | Mounting Type | Connector Style | Connector Type | Number of Rows [custom] | Material Flammability Rating | Contact Finish | Number of Positions | Shell Material, Finish | Contact Finish Thickness | Contact Type | Current Rating (Amps) | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | 4-40 | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Flash | Coax Signal | 5 A 30 A | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | |||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | M3 | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Flash | Coax Signal | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | 20A 5A | |||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | M3 | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Flash | Coax Signal | 5 A 30 A | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | |||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | 4-40 | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Flash | Coax Signal | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | 10A 5A | |||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Board Side (M3) | Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Flash | Coax Signal | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | ||||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Board Side (M3) | Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Flash | Signal and Power | 5 A 40 A | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | ||||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Board Side (M3) | Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Coax Signal | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | 20A 5A | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Board Side (4-40) | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Nickel Plated Steel | Flash | Coax Signal | 5 A 30 A | Solder | 1 | 5W1 DE E | Grounding Indents Shielded | |||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | M3 | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Flash | Signal and Power | 5 A 40 A | Solder | 1 | 5W1 DE E | Board Lock Grounding Indents Shielded | ||||
 EDAC Inc. | Polyester Thermoplastic | 125 VDC | Copper Alloy | -55 C | 125 °C | Black | Board Side (M3) | Panel Mount Through Hole | Combo D-Sub | Plug Male Pins | 2 | UL94 V-0 | Gold | 5 | Coax Signal | Solder | 1 | 5W1 DE E | Grounding Indents Shielded | 10A 5A | 30 Áin | 0.76 Ám |
