WP3-P0 Series

Catalog

CONN PLUG 42POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Features	Mated Stacking Heights	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Pitch	Pitch
JAE Electronics WP3-P042VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	42	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in

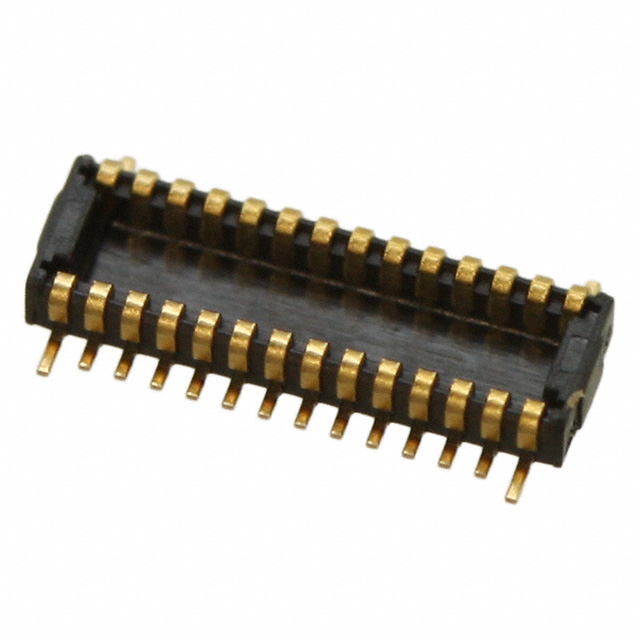

JAE Electronics WP3-P024VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	24	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in

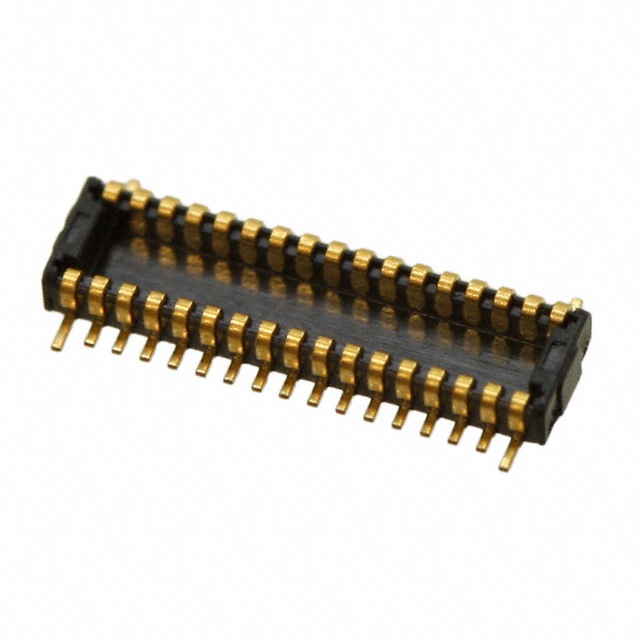

JAE Electronics WP3-P030VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	30	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in
JAE Electronics WP3-P030VA1-C100	0.033 in	0.84 mm	2	Solder Retention	1 mm	30	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in
JAE Electronics WP3-P022VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	22	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in

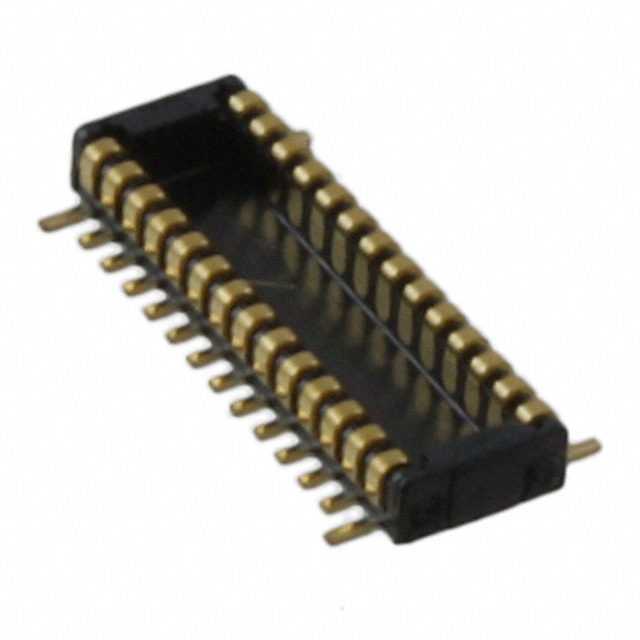

JAE Electronics WP3-P024VA1-R500	0.033 in	0.84 mm	2	Solder Retention	1 mm	24	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in

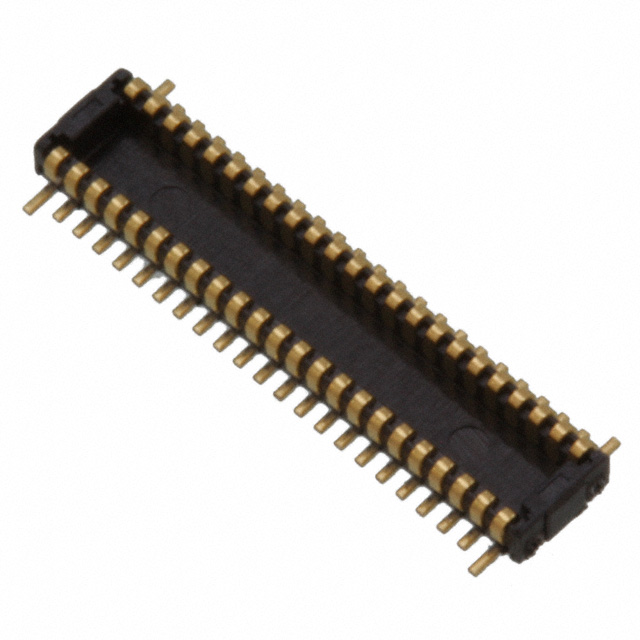

JAE Electronics WP3-P042VA1-R500	0.033 in	0.84 mm	2	Solder Retention	1 mm	42	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in
JAE Electronics WP3-P070VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	70	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in
JAE Electronics WP3-P016VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	16	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in
JAE Electronics WP3-P064VA1-R6000	0.033 in	0.84 mm	2	Solder Retention	1 mm	64	Gold	0.1 Ám	4 Áin	Surface Mount	Plug Outer Shroud Contacts	0.4 mm	0.016 in
