MS3106F22 Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CONN PLUG MALE 9P SILV SLDR CUP
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Qualification | Color | Ingress Protection | Voltage Rating | Orientation | Connector Type | Number of Positions | Contact Finish - Mating | Mounting Type | Grade | Shell Finish | Primary Material | Shell Material | Features | Shell Size - Insert | Contact Material | Backshell Material, Plating | Insert Material | Applications | Shell Size - Insert | Cable Opening | Cable Opening | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Threaded | -55 C | 125 °C | 22 A 74 A | MIL-DTL-5015 | Olive Drab | Environment Resistant | 500 VAC 700 VDC | N (Normal) | Plug Male Pins | 9 | Silver | Free Hanging (In-Line) | Military | Olive Drab Cadmium | Metal | Aluminum Alloy | Cable Clamp Coupling Nut | 22 27 | ||||||||

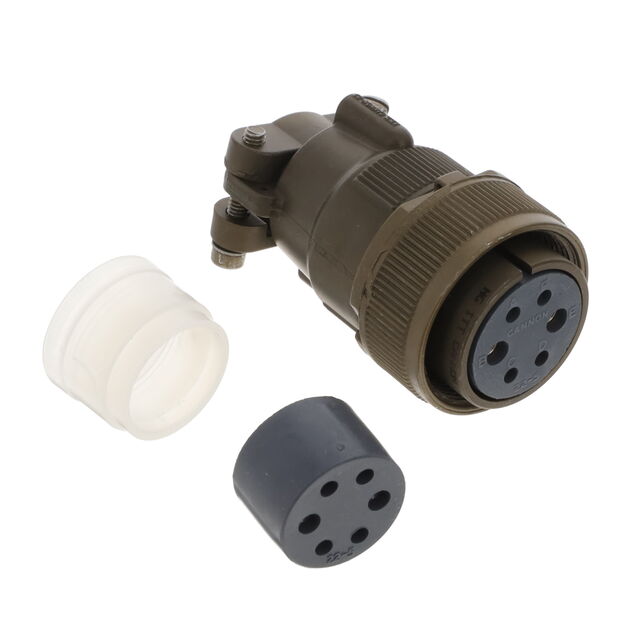

 ITT Cannon, LLC | Threaded | -55 C | 125 °C | MIL-DTL-5015 | Olive Drab | Environment Resistant | N (Normal) | Plug Female Sockets | 6 | Silver | Free Hanging (In-Line) | Military | Olive Drab Chromate over Cadmium | Metal | Aluminum Alloy | Backshell Cable Clamp Coupling Nut | Copper Alloy | Aluminum Alloy Olive Drab Chromate over Cadmium | Neoprene | Marine Military | 22-5 | 18.8 mm | 0.74 in | Unshielded |
