PPTC322 Series

Catalog

CONN HDR 64POS 0.1 TIN PCB R/A

Part	Insulation Material	Contact Material	Contact Shape	Current Rating (Amps)	Fastening Type	Termination	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Connector Type	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height

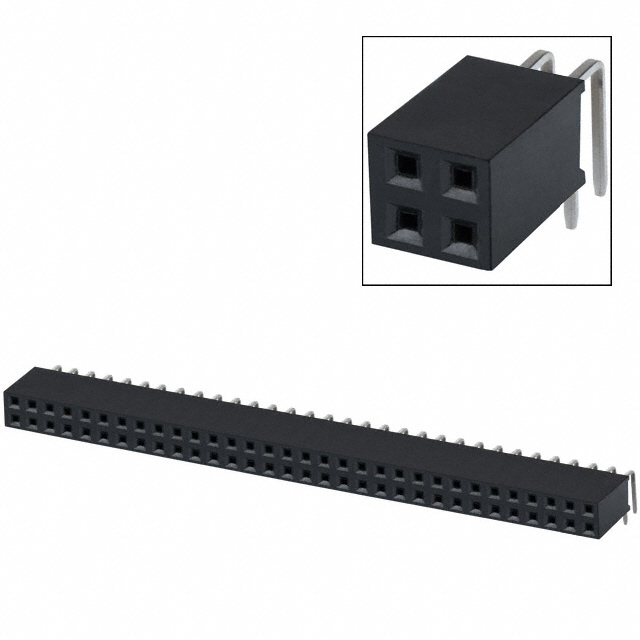

Sullins Connector Solutions PPTC322LJBN-RC	Polyester	Phosphor Bronze	Square	3 A	Push-Pull	Solder	0.1 "	2.54 mm	-40 C	105 ░C	64	Right Angle Through Hole	0.2 in	5.08 mm	250 V	UL94 V-0	0.1 in	2.54 mm	2	Header	Tin	Black	0.124 in	3.15 mm	Female Socket	All

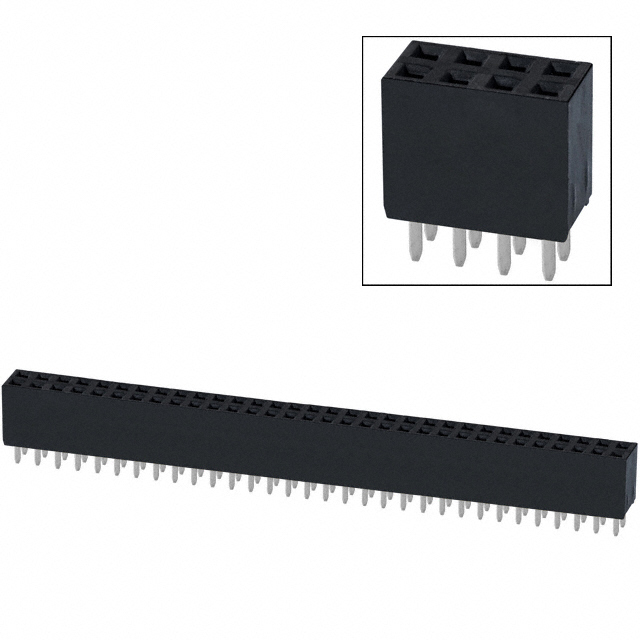

Sullins Connector Solutions PPTC322LFBN	Polyester	Phosphor Bronze	Square	3 A	Push-Pull	Solder	0.1 "	2.54 mm	-40 C	105 ░C	64	Through Hole			250 V	UL94 V-0	0.1 in	2.54 mm	2	Header	Tin	Black			Female Socket	All	0.126 "	3.2 mm	0.335 "	8.51 mm
Sullins Connector Solutions PPTC322LJBN	Polyester	Phosphor Bronze	Square	3 A	Push-Pull	Solder	0.1 "	2.54 mm	-40 C	105 ░C	64	Right Angle Through Hole	0.2 in	5.08 mm	250 V	UL94 V-0	0.1 in	2.54 mm	2	Header	Tin	Black	0.124 in	3.15 mm	Female Socket	All
