Its0 Series Series

Tactile Switches Illuminated Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches Illuminated Tact Switch

Part	Actuator Orientation	Switch Function	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Actuator Type	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Circuit	Operating Force	Actuator Material	Termination Style	Illumination	Switch Travel	Mounting Type

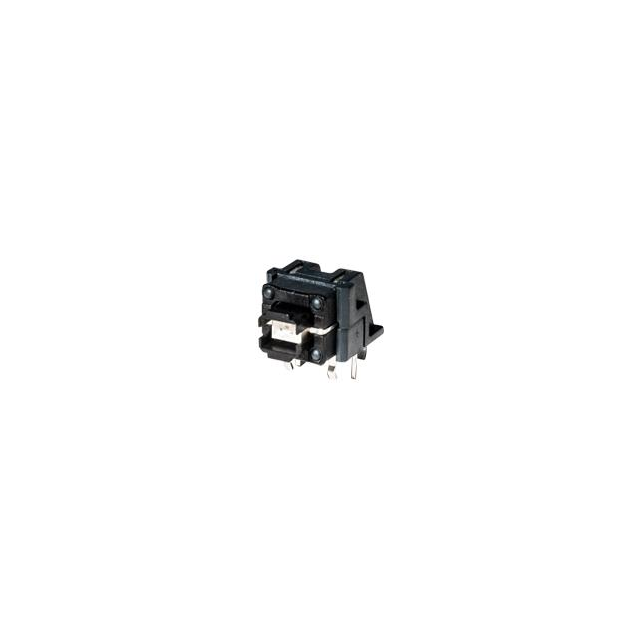

Littelfuse/Commercial Vehicle Products ITS50FR3NSR	Side Actuated	Off-Mom	3.6 VDC	0.05 A 12 VDC	Plunger for Cap	LED White	70 °C	-25 °C	4 mm	6.7 mm	SPST-NO	220 gf	Nylon Polyamide (PA)	SMD (SMT) Tab	Illuminated	0.25 mm	Surface Mount Right Angle

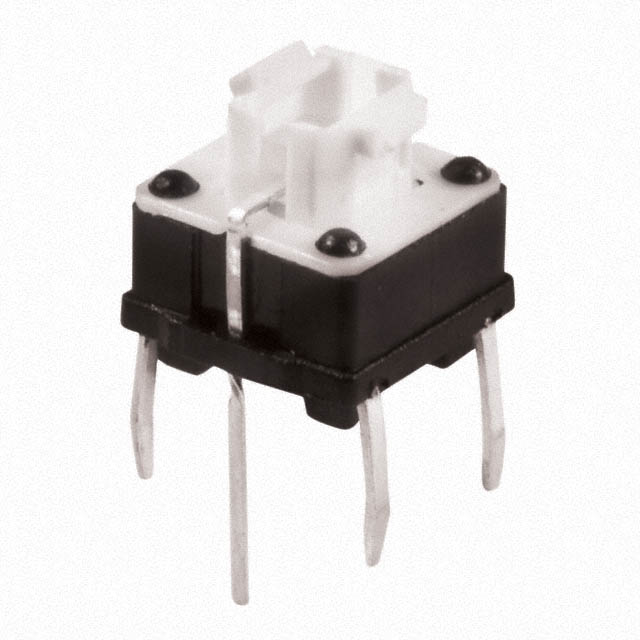

Littelfuse/Commercial Vehicle Products ITS50FV1ST	Top Actuated	Off-Mom	3.6 VDC	0.05 A 12 VDC	Plunger for Cap	LED White	70 °C	-25 °C	6.8 mm	7.2 mm	SPST-NO		Nylon Polyamide (PA)	PC Pin	Illuminated	0.25 mm	Through Hole
Littelfuse/Commercial Vehicle Products ITS13FR3NSR	Side Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green/Red LED	70 °C	-25 °C	4 mm	6.7 mm	SPST-NO	220 gf	Nylon Polyamide (PA)	SMD (SMT) Tab	Illuminated	0.25 mm	Surface Mount Right Angle
Littelfuse/Commercial Vehicle Products ITS40FR3SR	Side Actuated	Off-Mom	3.6 VDC	0.05 A 12 VDC	Plunger for Cap	Blue LED	70 °C	-25 °C	4 mm	6.7 mm	SPST-NO	220 gf	Nylon Polyamide (PA)	SMD (SMT) Tab	Illuminated	0.25 mm	Surface Mount Right Angle
Littelfuse/Commercial Vehicle Products ITS23FV1ST	Top Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green LED Yellow	70 °C	-25 °C	6.8 mm	7.2 mm	SPST-NO		Nylon Polyamide (PA)	PC Pin	Illuminated	0.25 mm	Through Hole

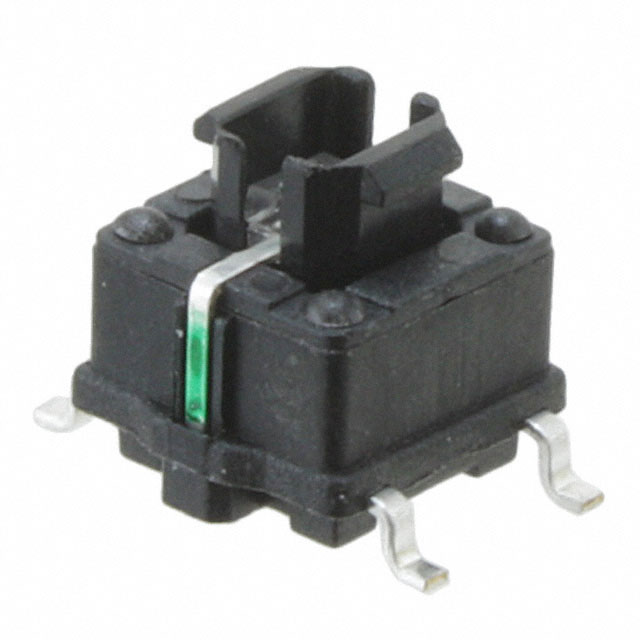

Littelfuse/Commercial Vehicle Products ITS23FV3SR	Top Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green LED Yellow	70 °C	-25 °C	7 mm	7.5 mm	SPST-NO		Nylon Polyamide (PA)	J Lead	Illuminated	0.25 mm	Surface Mount

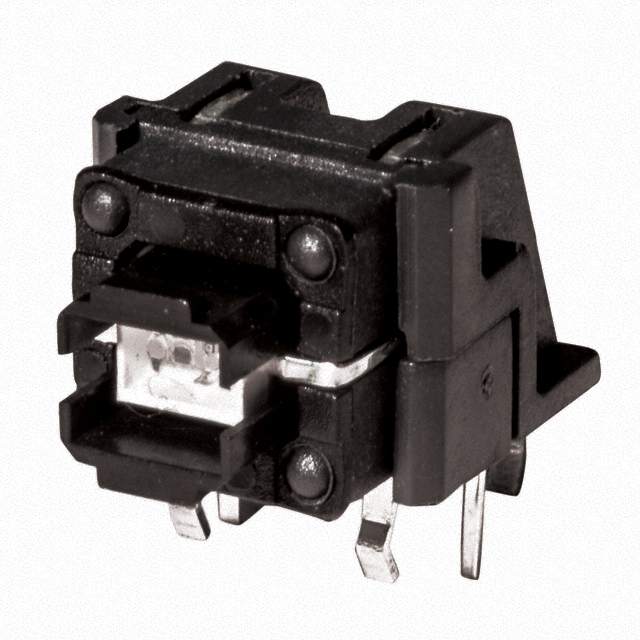

Littelfuse/Commercial Vehicle Products ITS13FR2ST	Side Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green/Red LED	70 °C	-25 °C	9.7 mm	8.3 mm	SPST-NO		Nylon Polyamide (PA)	PC Pin	Illuminated	0.25 mm	Through Hole Right Angle
Littelfuse/Commercial Vehicle Products ITS13FV3SR	Top Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green/Red LED	70 °C	-25 °C	7 mm	7.5 mm	SPST-NO		Nylon Polyamide (PA)	J Lead	Illuminated	0.25 mm	Surface Mount
Littelfuse/Commercial Vehicle Products ITS13FR1ST	Side Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green/Red LED	70 °C	-25 °C	6.8 mm	7 mm	SPST-NO		Nylon Polyamide (PA)	PC Pin	Illuminated	0.25 mm	Through Hole Right Angle
Littelfuse/Commercial Vehicle Products ITS23FR1ST	Side Actuated	Off-Mom	2.5 VDC	0.05 A 12 VDC	Plunger for Cap	Green LED Yellow	70 °C	-25 °C	6.8 mm	7 mm	SPST-NO		Nylon Polyamide (PA)	PC Pin	Illuminated	0.25 mm	Through Hole Right Angle

Catalog

Tactile Switches Illuminated Tact Switch

Key Features

• Vertical and right angle thru-hole models

• Vertical and right angle SMT models

• Multiple caps and legends

Description

The ITS series illuminated tact switch from C&K features vertical and right angle thru-hole and SMT models, ideal for a wide range of products – such as consumer electronics, medical devices and audio/video applications. In addition, multiple custom caps and legends are available to meet application-specific requirements.
