APT123 Series
Manufacturer: Panasonic Electric Works
Beta
⌘K
PHOTOTRIAC COUPLER 600V 4DIP
| Part | Current - Hold (Ih) | Voltage - Forward (Vf) (Typ) | Approval Agency | Number of Channels | Current - On State (It (RMS)) (Max) | Package / Case | Current - DC Forward (If) (Max) | Output Type | Static dV/dt (Min) [Min] | Zero Crossing Circuit | Turn On Time | Voltage - Off State | Operating Temperature [Max] | Operating Temperature [Min] | Current - LED Trigger (Ift) (Max) [Max] | Mounting Type | Voltage - Isolation | Supplier Device Package | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

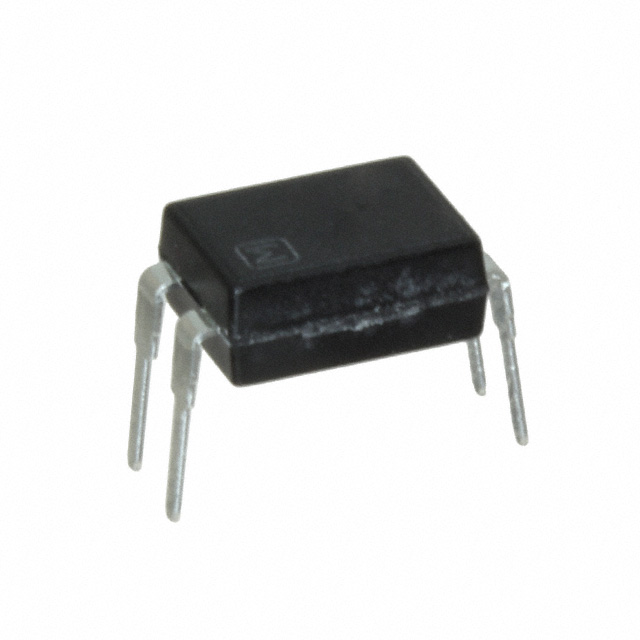

 Panasonic Electric Works | 3.5 mA | 1.21 V | cUR VDE | 1 | 50 mA | 4-DIP (0.300" 7.62mm) | 50 mA | Triac | 500 V/µs | 100 µs | 600 V | 100 °C | -40 °C | 10 mA | Through Hole | 3750 Vrms | 4-DIP | |||

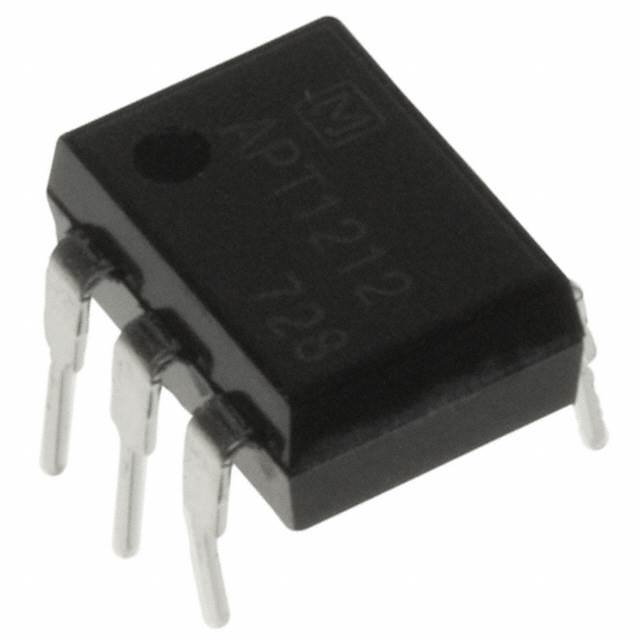

 Panasonic Electric Works | 3.5 mA | 1.21 V | cUR VDE | 1 | 100 mA | 6-DIP | 50 mA | Triac | 500 V/µs | 100 µs | 600 V | 100 °C | -40 °C | 10 mA | Through Hole | 6-DIP | 7.62 mm | 0.3 in 5 Leads |
