20.21.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

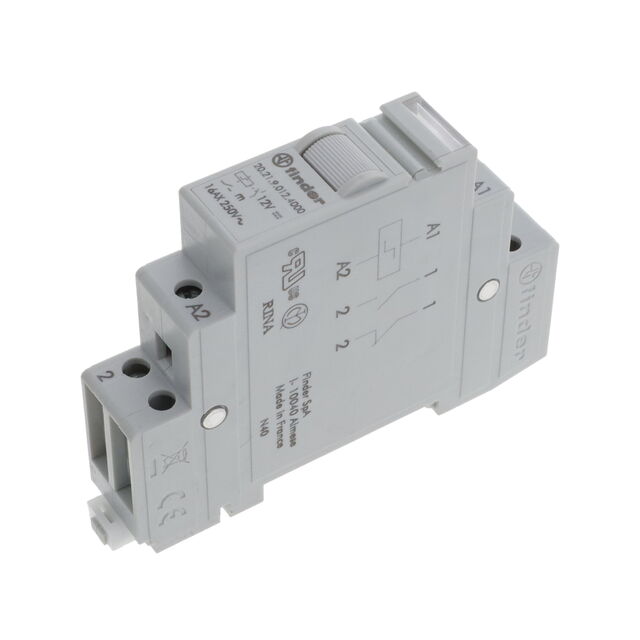

RELAY IMPULSE SPST 16A 12V
| Part | Coil Resistance | Coil Voltage | Approval Agency | Termination Style | Coil Type | Switching Voltage [Max] | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Relay Type | Contact Form | Load - Max Switching | Contact Material | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 27 Ohms | 12 VDC | CE cULus EAC RINA UKCA | Screw Terminal | Latching Single Coil | 400 VAC | Mechanical Indicator Test Button | DIN Rail | 40 °C | -40 C | 440 mA | Impulse | SPST-NO (1 Form A) | 6400 VA | Silver Nickel (AgNi) | 16 A |
 Finder Relays, Inc. | 27 Ohms | 12 VDC | CE cULus EAC RINA UKCA | Screw Terminal | Latching Single Coil | 400 VAC | Mechanical Indicator Test Button | DIN Rail | 40 °C | -40 C | 440 mA | Impulse | SPST-NO (1 Form A) | 6400 VA | Silver Tin Oxide (AgSnO) | 16 A |
