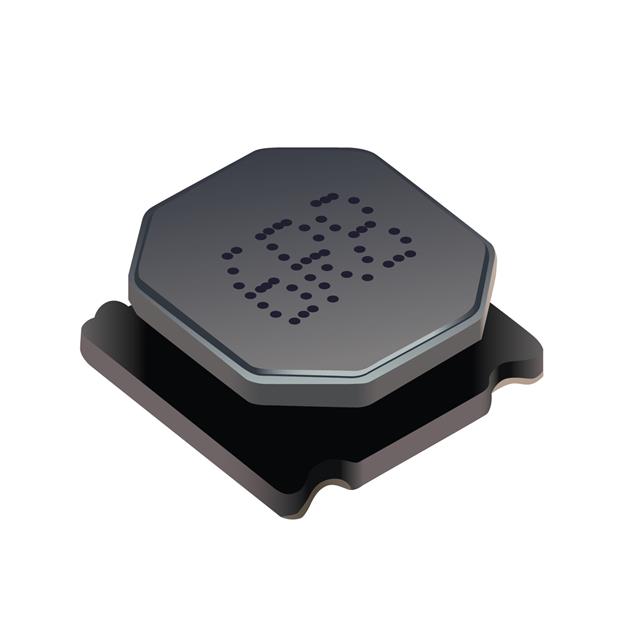

SRN6028 Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR POWER SEMI-SHIELDED WIREWOUND 3.9UH 20% 100KHZ 10Q-FACTOR FERRITE 3A 0.038OHM DCR 2424 T/R
| Part | Package / Case | Shielding | Inductance | Frequency - Self Resonant | Mounting Type | Current Rating (Amps) | Supplier Device Package | Inductance Frequency - Test | Material - Core | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Q @ Freq | Current - Saturation (Isat) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2424 (6060 Metric) | Shielded | 3.9 µH | 35 MHz | Surface Mount | 3 A | 6028 | 100 kHz | Ferrite | 38 mOhm | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 7.96 MHz 10 | 2.7 A | |
 Bourns Inc. | 2424 (6060 Metric) | Shielded | 6.2 µH | 45 MHz | Surface Mount | 2.8 A | 6028 | 100 kHz | Ferrite | 42 mOhms | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 15 100 kHz | 3 A | |
 Bourns Inc. | 2424 (6060 Metric) | Shielded | 1 µH | 110 MHz | Surface Mount | 5.2 A | 6028 | 100 kHz | Ferrite | 10 mOhm | 125 °C | -40 C | 30 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 15 100 kHz | 5.75 A | |
Bourns Inc. | 2424 (6060 Metric) | Shielded | 6 ÁH | 45 MHz | Surface Mount | 2.8 A | 6028 | 100 kHz | Ferrite | 42 mOhms | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 15 100 kHz | 3 A | |
 Bourns Inc. | 2424 (6060 Metric) | Shielded | 4.7 ÁH | 34 MHz | Surface Mount | 3 A | 6028 | 100 kHz | Ferrite | 38 mOhm | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 7.96 MHz 10 | 2.7 A | |
 Bourns Inc. | 2424 (6060 Metric) | Shielded | 6 ÁH | 28 MHz | Surface Mount | 2.5 A | 6028 | 100 kHz | Ferrite | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 7.96 MHz 10 | 2.5 A | 48 mOhm | |
Bourns Inc. | 2424 (6060 Metric) | Shielded | 1.5 µH | Surface Mount | 4.2 A | 6028 | 100 kHz | Ferrite | 125 °C | -40 C | 30 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 7.96 MHz 12 | 5.1 A | 21 mOhm | ||
Bourns Inc. | 2424 (6060 Metric) | Shielded | 47 µH | 9 MHz | Surface Mount | 920 mA | 6028 | 100 kHz | Ferrite | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 2.52 MHz 11 | 1 A | 360 mOhm | |
Bourns Inc. | 2424 (6060 Metric) | Shielded | 7 MHz | Surface Mount | 0.68 A | 6028 | 100 kHz | Ferrite | 750 mOhm | 125 °C | -40 C | 20 % | 0.236 " | 6 mm | 0.236 in | 6 mm | Drum Core Wirewound | 20 100 kHz | 720 mA |
