NRPN052 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 10POS 2MM

Part	Contact Finish Thickness - Post	Fastening Type	Style	Number of Positions Loaded	Contact Material	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Type	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Voltage Rating	Contact Finish Thickness - Mating	Number of Rows [custom]	Number of Positions	Insulation Height	Insulation Height	Connector Type	Mounting Type	Insulation Color	Contact Length - Post [custom]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN052MAMP-M81RC	Flash	Push-Pull	Board to Board Cable	All	Brass	Nylon 6T Polyamide (PA6T)	2 mm	0.079 in	Board Guide Pick and Place	Male Pin	Square	0.141 in	3.6 mm	Gold	Gold	UL94 V-0	0.079 "	2 mm	Solder	2 A	-40 C	105 ░C	Unshrouded	150 VDC	Flash	2	10	0.059 in	1.5 mm	Header	Surface Mount	Black

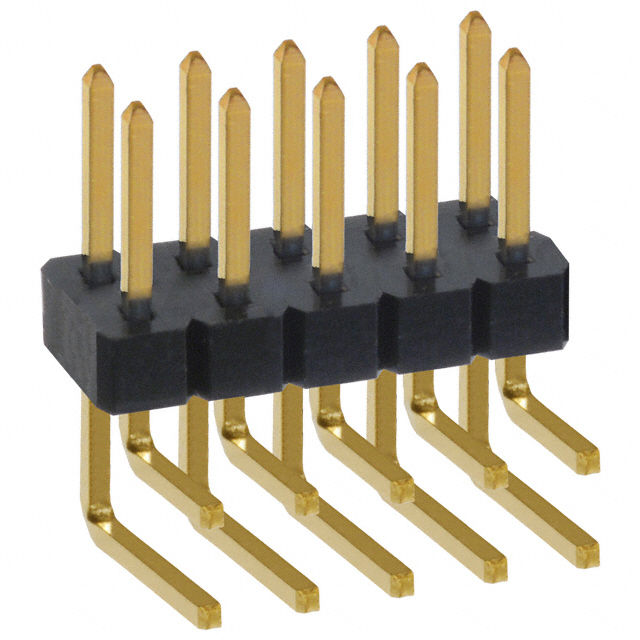

Sullins Connector Solutions NRPN052PARN-RC	Flash	Push-Pull	Board to Board Cable	All	Brass	Nylon 6T Polyamide (PA6T)	2 mm	0.079 in		Male Pin	Square	0.141 in	3.6 mm	Gold	Gold	UL94 V-0	0.079 "	2 mm	Solder	2 A	-40 C	105 ░C	Unshrouded	150 VDC	Flash	2	10			Header	Right Angle Through Hole	Black	0.11 in	2.79 mm	4 mm	0.157 in

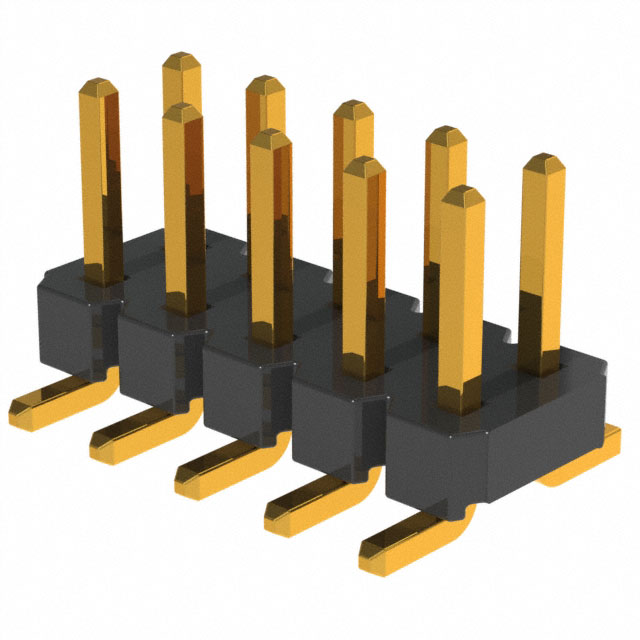

Sullins Connector Solutions NRPN052MAMS-RC	Flash	Push-Pull	Board to Board Cable	All	Brass	Nylon 6T Polyamide (PA6T)	2 mm	0.079 in		Male Pin	Square	0.141 in	3.6 mm	Gold	Gold	UL94 V-0	0.079 "	2 mm	Solder	2 A	-40 C	105 ░C	Unshrouded	150 VDC	Flash	2	10	0.059 in	1.5 mm	Header	Surface Mount	Black
Sullins Connector Solutions NRPN052PAEN-RC	Flash	Push-Pull	Board to Board Cable	All	Brass	Nylon 6T Polyamide (PA6T)	2 mm	0.079 in		Male Pin	Square	0.141 in	3.6 mm	Gold	Gold	UL94 V-0	0.079 "	2 mm	Solder	2 A	-40 C	105 ░C	Unshrouded	150 VDC	Flash	2	10			Header	Through Hole	Black	0.11 in	2.79 mm	2 mm	0.079 in	0.33 in	8.38 mm
