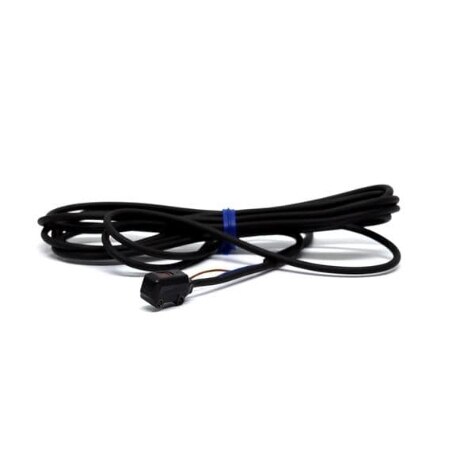

E3T-SL12 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SENSOR REFLECTIVE 15MM NPN DK ON
| Part | Ingress Protection | Light Source | Response Time | Sensing Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Connection Method |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | IEC IP67 IP67 IEC | RED (650nm) | 1 ms | Convergent Reflective | 12 VDC | 24 V | 0.591 in | 5 mm | 15 mm | 0.197 in | 55 °C | -25 °C | NPN - Open Collector/Dark-ON | Connector |
 Omron Automation and Safety | IEC IP67 IP67 IEC | RED (650nm) | 1 ms | Convergent Reflective | 12 VDC | 24 V | 0.591 in | 5 mm | 15 mm | 0.197 in | 55 °C | -25 °C | NPN - Open Collector/Dark-ON | Wire |
