892-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Gender	Termination	Read Out	Number of Positions/Bay/Row	Contact Material	Pitch	Pitch	Number of Rows [custom]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Features	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 892-066-555-201	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold	Card Extender	Non Specified - Dual Edge	66	0.25 Ám	10 Áin
EDAC Inc. 892-066-524-203	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-066-523-203	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 892-066-523-208	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 892-066-540-207	2	Polyphenylene Sulfide (PPS)	Female	Wire Wrap	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 892-066-523-204	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm
EDAC Inc. 892-066-521-212	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm

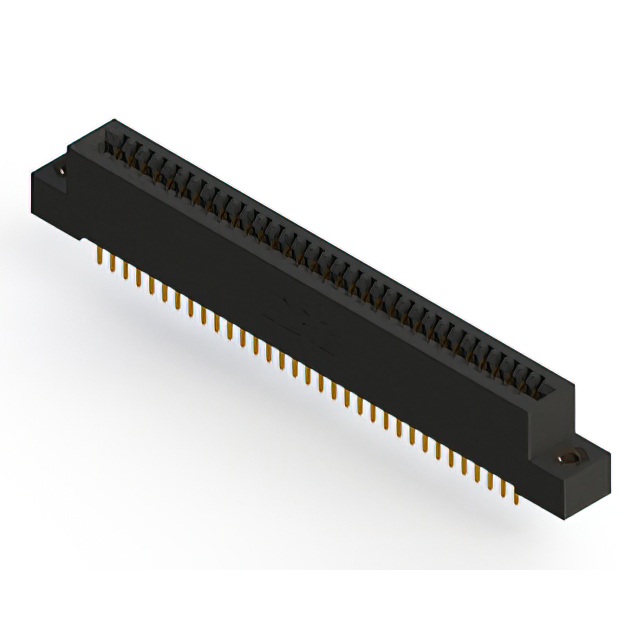

EDAC Inc. 892-066-521-207	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin		Flush Mount M3 Threaded Insert Top Opening

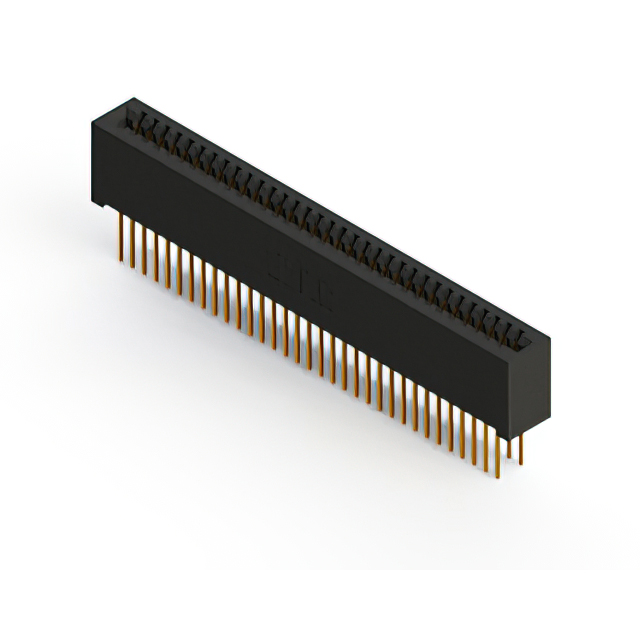

EDAC Inc. 892-066-541-201	2	Polyphenylene Sulfide (PPS)	Female	Wire Wrap	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin
EDAC Inc. 892-066-520-207	2	Polyphenylene Sulfide (PPS)	Female	Solder	Dual	33	Copper Alloy	0.1 "	2.54 mm	2	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever	Black	125 °C	-40 C	Gold		Non Specified - Dual Edge	66	0.25 Ám	10 Áin		Flush Mount M3 Threaded Insert Top Opening
