082-655 Series
Manufacturer: Amphenol RF
Beta
⌘K

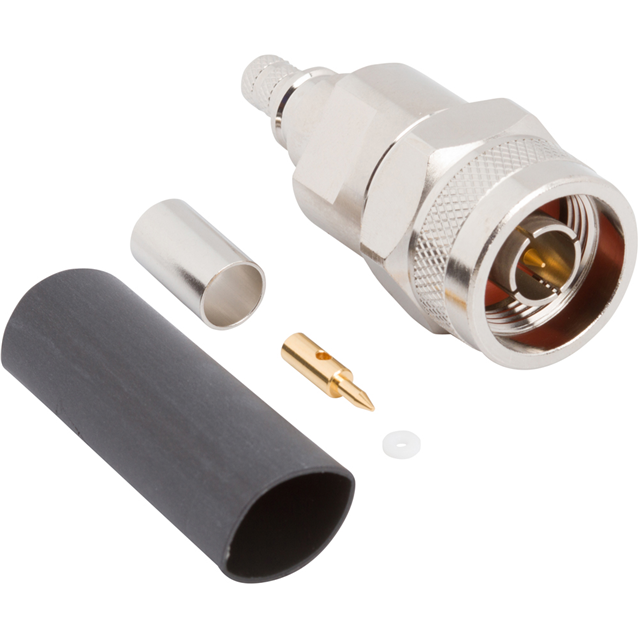

CONN N PLUG STR 50 OHM SOLDER
| Part | Voltage Rating | Cable Group | Shield Termination | Includes | Dielectric Material | Impedance | Center Contact Material | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Contact Termination | Connector Type | Insertion Loss | Frequency - Max [Max] | Mating Cycles | Body Finish | Mounting Type | Connector Style | Housing Color | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | 1500 V | Belden 9258 LMR-240 | Crimp | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | 1 | -65 ░C | 165 °C | Brass | Gold | Solder | Male Pin Plug | 0.15 dB | 6000 MHz | 500 | Nickel | Free Hanging (In-Line) | N Type | Silver | IP67 - Dust Tight Waterproof |
