TG12 Series

Catalog

TEG GENERATOR 30X30X3.33MM

Part	Type	Number of Stages	Current - Max [Max]	Voltage - Max [Max]	Qmax @ Th	Resistance	Operating Temperature	Features	Height [z]	Size / Dimension [x]	Size / Dimension [y]

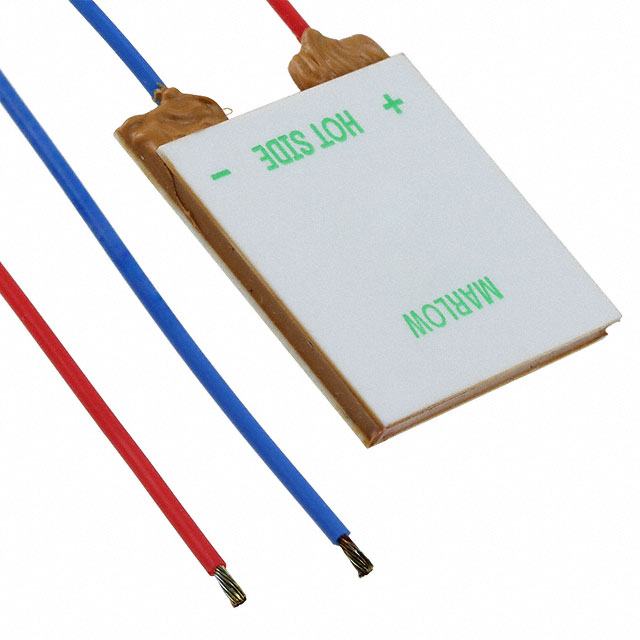

Marlow Industries, Inc. TG12-4-01LS	TEG (Thermoelectric Generator)	1	800 mA	1.9 V	0.6 W	5.72 Ohms	200 °C	Lapped Lead Wires Sealed	3.33 mm	34 mm	30 mm
Marlow Industries, Inc. TG12-8-01G	TEG (Thermoelectric Generator)	1	1.5 A	1.9 V	1.2 W	2.9 Ohms	200 °C	Graphite Pads Lead Wires	3.63 mm	44.7 mm	40.13 mm

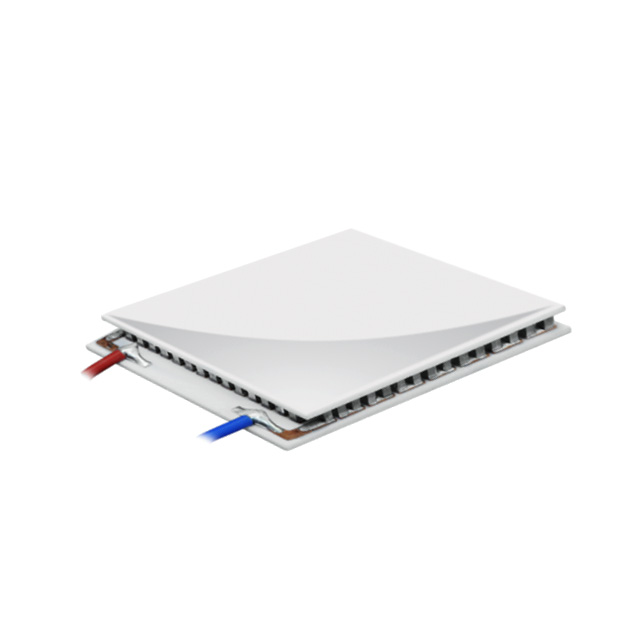

Marlow Industries, Inc. TG12-2.5-01LS	TEG (Thermoelectric Generator)	1	500 mA	1.9 V	0.4 W		200 °C	Lapped Lead Wires Sealed	3.94 mm	34.01 mm	30 mm
Marlow Industries, Inc. TG12-2.5-01L	TEG (Thermoelectric Generator)	1	500 mA	1.9 V	0.4 W		200 °C	Lapped Lead Wires	3.94 mm	34.01 mm	30 mm

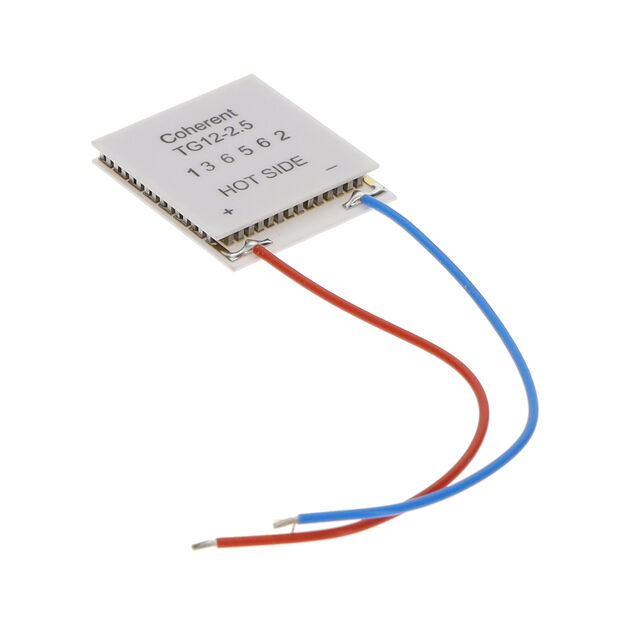

Marlow Industries, Inc. TG12-2.5-01	TEG (Thermoelectric Generator)	1	500 mA	1.9 V	0.4 W		200 °C	Lead Wires	4.04 mm	34.01 mm	30 mm

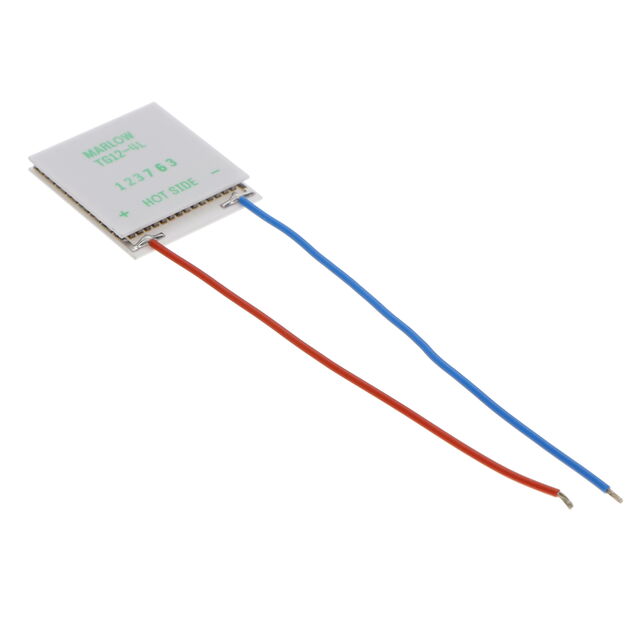

Marlow Industries, Inc. TG12-4-01L	TEG (Thermoelectric Generator)	1	800 mA	1.9 V	0.6 W	5.72 Ohms	200 °C	Lapped Lead Wires	3.33 mm	34 mm	30 mm
Marlow Industries, Inc. TG12-6-01S	TEG (Thermoelectric Generator)	1	1.1 A	1.9 V	0.9 W	3.82 Ohms	200 °C	Lead Wires Sealed	4.01 mm	44.7 mm	40.13 mm
Marlow Industries, Inc. TG12-8-01SG	TEG (Thermoelectric Generator)	1	1.5 A	1.9 V	1.2 W	2.9 Ohms	200 °C	Graphite Pads Lead Wires Sealed	3.63 mm	44.7 mm	40.13 mm
Marlow Industries, Inc. TG12-8-01S	TEG (Thermoelectric Generator)	1	1.5 A	1.9 V	1.2 W	2.9 Ohms	200 °C	Lead Wires Sealed	3.63 mm	44.7 mm	40.13 mm

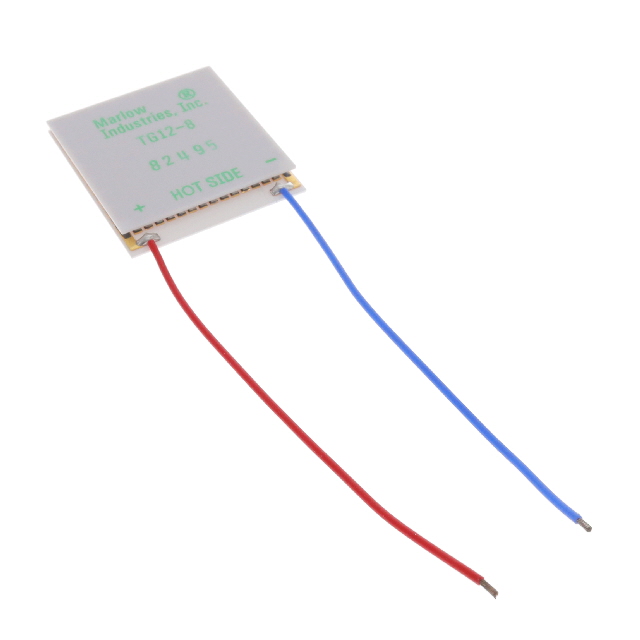

Marlow Industries, Inc. TG12-8-01	TEG (Thermoelectric Generator)	1	1.5 A	1.9 V	1.2 W	2.9 Ohms	200 °C	Lead Wires	3.63 mm	44.7 mm	40.13 mm
