32K141 Series
Manufacturer: Rosenberger
Beta
⌘K

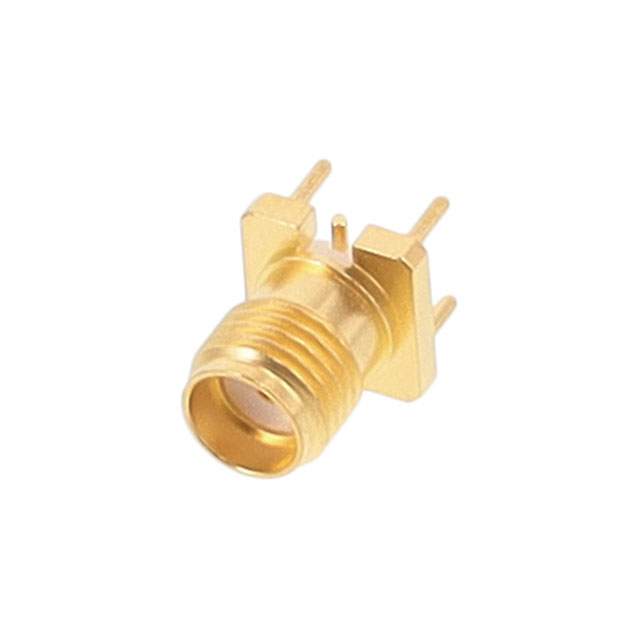

STRAIGHT JACK PCB
| Part | Center Contact Plating | Body Material | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Fastening Type | Contact Termination | Shield Termination | Connector Type | Center Contact Material | Connector Style | Housing Color | Impedance | Frequency - Max [Max] | Mounting Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Brass | Polytetrafluoroethylene (PTFE) | 480 V | -65 ░C | 165 °C | Gold | Threaded | Solder | Solder | Female Socket Jack | Beryllium Copper | SMA | Gold | 50 Ohms | 12.4 GHz | Surface Mount Through Hole | 1 |
