90136 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Applications	Contact Material	Termination	Style	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Fastening Type	Connector Type	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Mounting Type	Material Flammability Rating	Number of Rows	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Mating	Insulation Height	Insulation Height

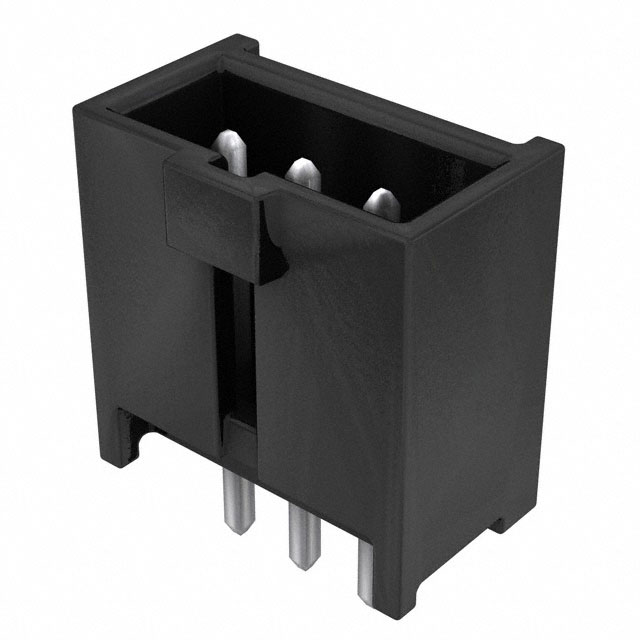

Molex 0901361103	Automotive General Purpose	Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	118.1 µin	3 µm	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm	0.429 in	10.9 mm	Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm

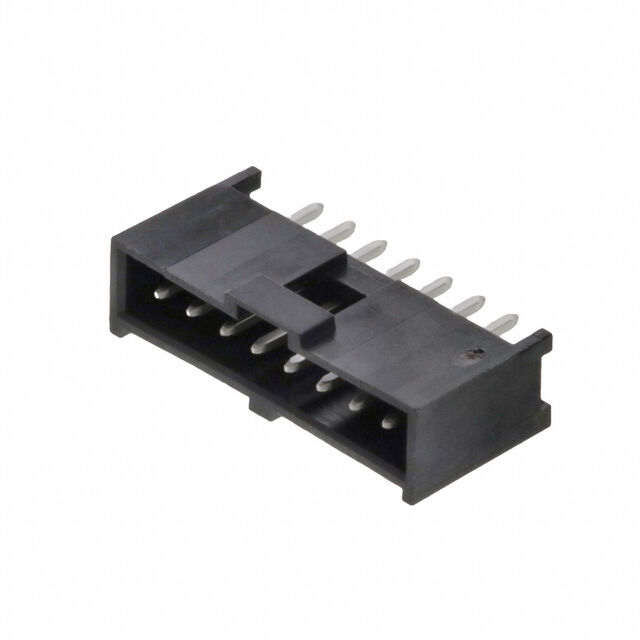

Molex 0901361108	Automotive General Purpose	Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	118.1 µin	3 µm	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm	0.429 in	10.9 mm	Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm	8
Molex 901361307

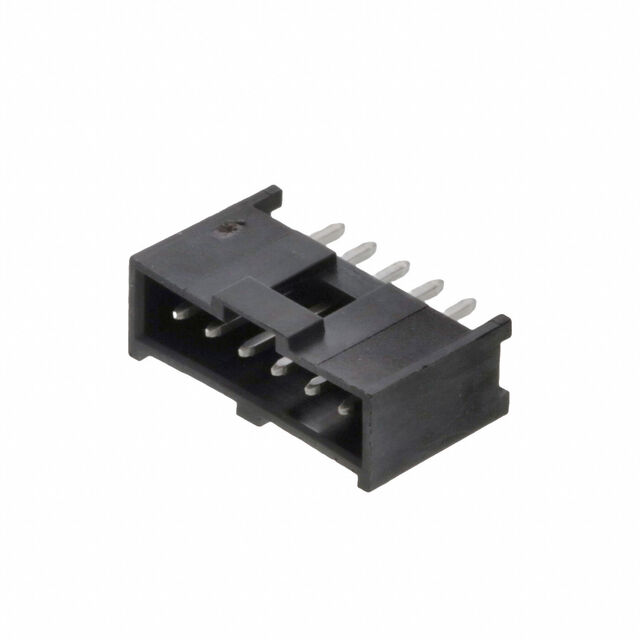

Molex 0901361106	Automotive General Purpose	Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	118.1 µin	3 µm	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm	0.429 in	10.9 mm	Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm	6
Molex 0901361305		Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	30 Áin	0.76 Ám	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm	0.429 in	10.9 mm	Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm	5	Gold
Molex 901362304
Molex 901361216
Molex 0901361110	Automotive General Purpose	Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	118.1 µin	3 µm	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm	0.429 in	10.9 mm	Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm	10
Molex 0901362108	Automotive General Purpose	Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	118.1 µin	3 µm	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm			Right Angle Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm	8		7.21 mm	0.284 in

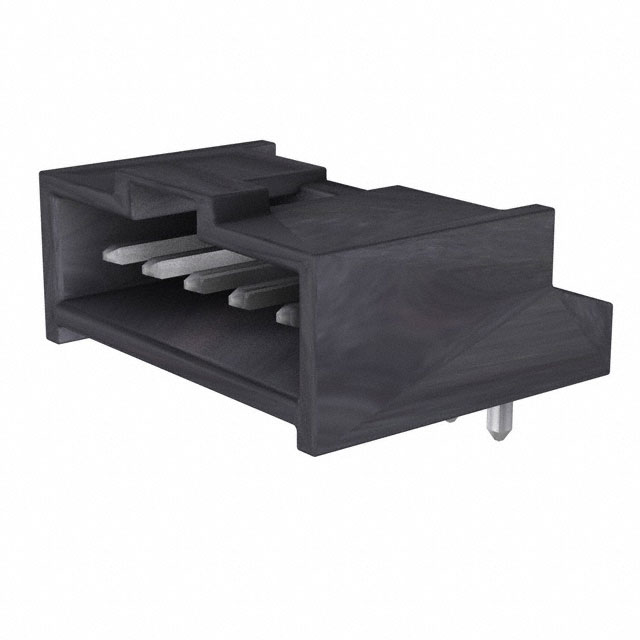

Molex 0901362105	Automotive General Purpose	Brass	Solder	Board to Cable/Wire	0.266 in	6.75 mm	Square	Male Pin	118.1 µin	3 µm	Tin	Black	Latch Holder	Header	All	0.114 in	2.9 mm			Right Angle Through Hole	UL94 V-0	1	Shrouded - 4 Wall	Polyester Glass Filled	0.1 "	2.54 mm	5		7.21 mm	0.284 in
