GW12LC Series
Manufacturer: NKK Switches
Beta
⌘K
ROCKER SWITCH, NON ILLUMINATED, SPDT, ON-NONE-ON, RED, THROUGH HOLE, 100 MA
| Part | Mechanical Life | Electrical Life | Circuit | Switch Function | Approval Agency | Voltage Rating - DC | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - AC | Actuator Type | Features | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

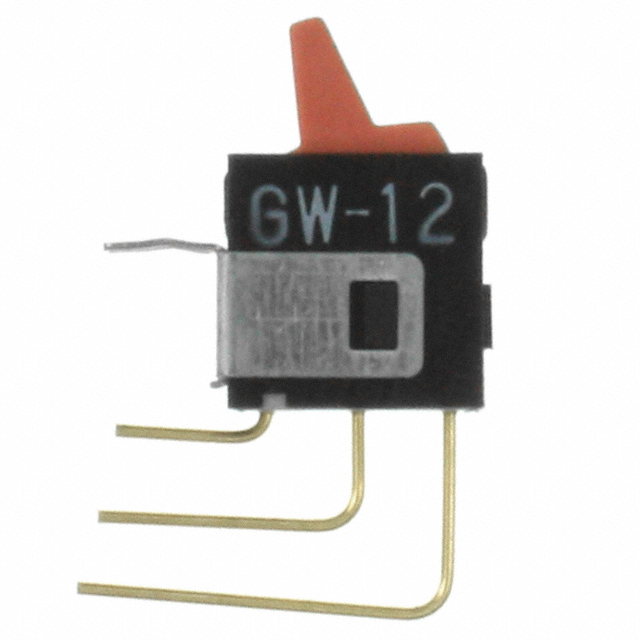

 NKK Switches | 50000 Cycles | 50000 Cycles | SPDT | On-On | CSA UL | 28 V | No Marking | 85 °C | -30 ░C | Right Angle Through Hole Vertical | 0.4 VA | Red | 28 V | Paddle | Sealed - Flux Protection | PC Pin |

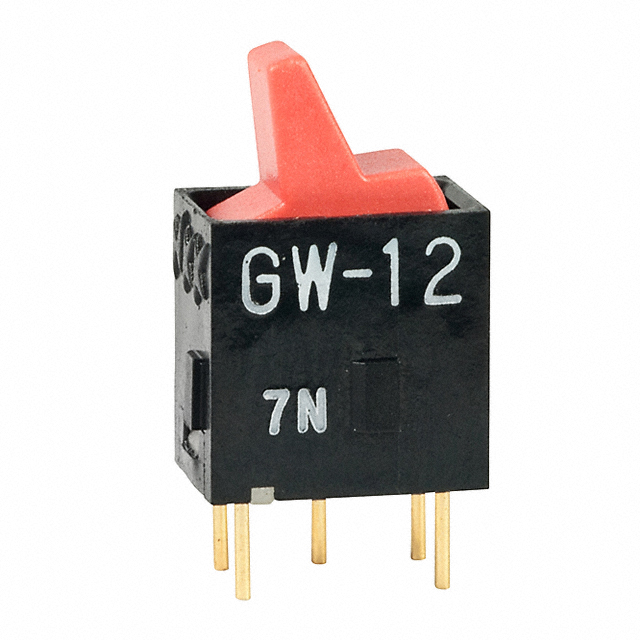

 NKK Switches | 50000 Cycles | 50000 Cycles | SPDT | On-On | CSA UL | 28 V | No Marking | 85 °C | -30 ░C | Through Hole | 0.4 VA | Red | 28 V | Paddle | Sealed - Flux Protection | PC Pin |
