EP5358 Series
Manufacturer: Altera
Beta
⌘K
DC DC CONVERTER 1.8-3.3V 2W
| Part | Supplier Device Package | Features | Number of Outputs | Mounting Type | Voltage - Input (Min) [Min] | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Type | Efficiency | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Package / Case | Control Features | Frequency - Switching | Regulator Topology | Outputs and Type | Outputs and Type | Main Purpose | Board Type | Current - Output | Supplied Contents | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

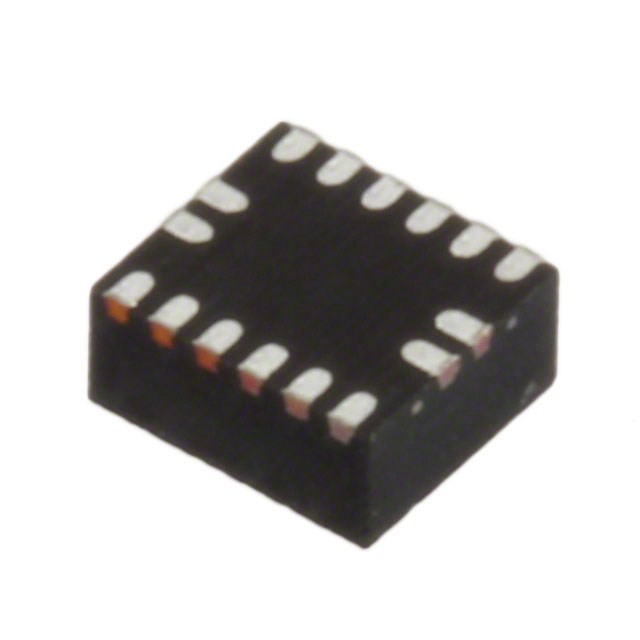

 Altera | 16-µQFN (2.5x2.25) | OCP OTP SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 105 ░C | 5.5 V | Non-Isolated PoL Module | 93 % | 3.3 V | 1.8 V | 16-PowerTFQFN Module | |||||||||||||||
 Altera | 16-µQFN (2.5x2.25) | OCP OTP Remote On/Off SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 85 °C | 5.5 V | Non-Isolated PoL Module | 93 % | 3.3 V | 1.8 V | 16-PowerTFQFN Module | Active High Enable | ||||||||||||||
Altera | 16-µQFN (2.5x2.25) | OCP OTP Remote On/Off SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 85 °C | 5.5 V | Non-Isolated PoL Module | 93 % | 3.3 V | 1.8 V | 16-PowerTFQFN Module | Active High Enable | ||||||||||||||

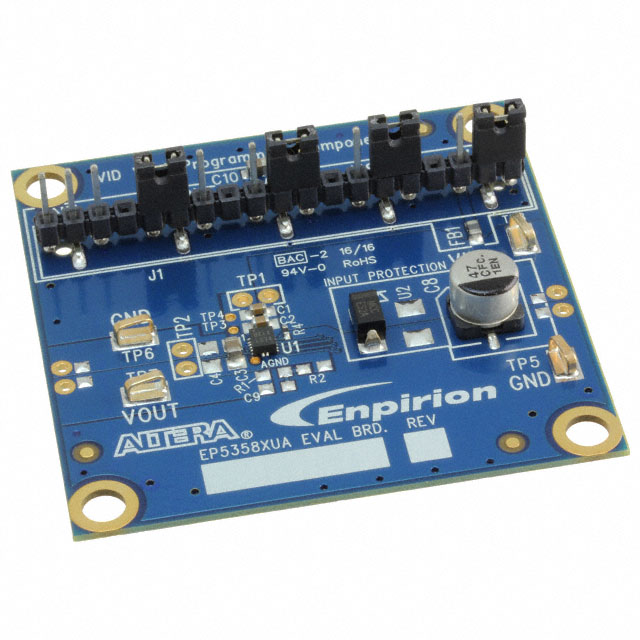

 Altera | 5 MHz | Buck | 1 | Non-Isolated | DC/DC Step Down | Fully Populated | 600 mA | Board(s) | EP5358LUA | 2.4 V | 5.5 V | |||||||||||||||||||||||||
Altera | 16-µQFN (2.5x2.25) | OCP OTP SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 105 ░C | 5.5 V | Non-Isolated PoL Module | 93 % | 16-PowerTFQFN Module | 5.2 V | 0.6 V | |||||||||||||||
Altera | 16-µQFN (2.5x2.25) | OCP OTP Remote On/Off SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 85 °C | 5.5 V | Non-Isolated PoL Module | 93 % | 16-PowerTFQFN Module | Active High Enable | 5.2 V | 0.6 V | ||||||||||||||
Altera | 16-µQFN (2.5x2.25) | OCP OTP Remote On/Off SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 85 °C | 5.5 V | Non-Isolated PoL Module | 93 % | 16-PowerTFQFN Module | Active High Enable | 5.2 V | 0.6 V | ||||||||||||||
Altera | 16-µQFN (2.5x2.25) | OCP OTP SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 105 ░C | 5.5 V | Non-Isolated PoL Module | 93 % | 3.3 V | 1.8 V | 16-PowerTFQFN Module | |||||||||||||||
Altera | 5 MHz | Buck | 1 Non-Isolated Output | DC/DC Step Down | 600 mA | EP5358LUA | 2.4 V | 5.5 V | Board(s) | |||||||||||||||||||||||||||
Altera | 16-µQFN (2.5x2.25) | OCP OTP SCP UVLO | 1 | Surface Mount | 2.4 V | ITE (Commercial) | 1.1 mm | 0.09 " | 0.1 " | 2.3 mm | 2.5 mm | 0.04 in | 600 mA | -40 C | 105 ░C | 5.5 V | Non-Isolated PoL Module | 93 % | 16-PowerTFQFN Module | 5.2 V | 0.6 V |
