PSE NO Series

Pushbutton Switches PSE 16ANAF 00000000-IV-L

Manufacturer: SCHURTER Inc.

Catalog

Pushbutton Switches PSE 16ANAF 00000000-IV-L

Catalog

Pushbutton Switches PSE 16ANAF 00000000-IV-L

Part	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Switch Function	Type	Current Rating (Amps)	Termination Style	Mounting Type	Voltage Rating - DC	Ingress Protection	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)	Electrical Life
SCHURTER Inc. 1241.3998	Button Flush Round	22.3 mm	32 V	SPST-NO	-20 ░C	60 °C	No Marking	Off-Mom	Piezo	1 A	Wire Leads	Panel Mount Front	48 V	IP67 - Dust Tight Waterproof	Silver
SCHURTER Inc. 1241.3075	Button Flush Round	22.3 mm	42 V	SPST-NO	-40 C	85 °C	No Marking	Off-Mom	Piezo	100 mA	PC Pin	Panel Mount Front	60 VDC	IP67 - Dust Tight Waterproof	Silver
SCHURTER Inc. 1241.3269							No Marking
SCHURTER Inc. 1241.3089.M	Button Flush Round	22.3 mm	42 V	SPST-NO	-40 C	85 °C	No Marking	Off-Mom	Piezo	100 mA	Quick Connect - 0.250" (6.3mm)	Panel Mount Front	60 VDC	IP67 - Dust Tight Waterproof	Silver	Green LED	24 V
SCHURTER Inc. 1241.3011	Button Flush Round	27.3 mm	42 V	SPST-NO	-40 C	85 °C	No Marking	Off-Mom	Piezo	100 mA	Wire Leads	Panel Mount Front	60 VDC	IP67 - Dust Tight Waterproof	Silver	Green/Red LED	24 V
SCHURTER Inc. 1241.3318							No Marking
SCHURTER Inc. 1241.3012	Button Flush Round	30.3 mm	42 V	SPST-NO	-40 C	85 °C	No Marking	Off-Mom	Piezo	100 mA	Wire Leads	Panel Mount Front	60 VDC	IP67 - Dust Tight Waterproof	Silver	Green/Red LED	24 V	20000000 Cycles
SCHURTER Inc. 1241.3046.8	Button Flush Round	16.2 mm	32 V	SPST-NO	-20 ░C	60 °C	No Marking	Off-Mom	Piezo	1 A	Wire Leads	Panel Mount Front	48 V	IP67 - Dust Tight Waterproof	Silver			20000000 Cycles

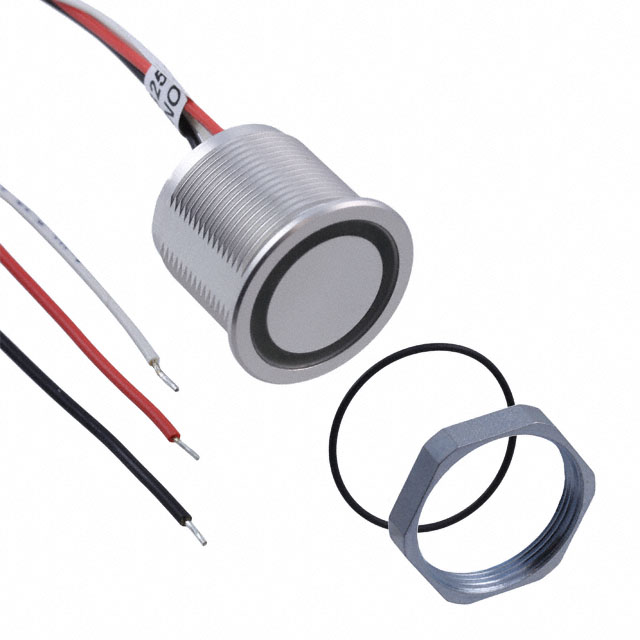

SCHURTER Inc. 1241.3250	Button Flush Round	22.1 mm	42 V	SPST-NO	-40 C	85 °C	No Marking	Off-Mom	Piezo	100 mA	Wire Leads	Panel Mount Front	60 VDC	IP67 - Dust Tight Waterproof	Silver	LED Red	12 VDC	20000000 Cycles
