9LG0612 Series

Catalog

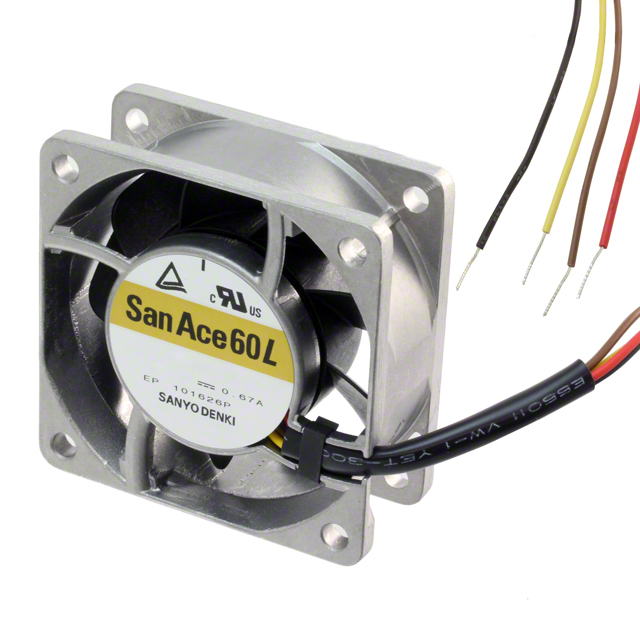

DC AXIAL FAN, 38.8CU.FT/MIN, BALL, 60MM ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Noise	Weight [custom]	Weight [custom]	Bearing Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Features	Width [y]	Voltage - Rated	Air Flow	Air Flow	Fan Type	Termination	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)
Sanyo Denki America Inc. 9LG0612P4J001	390 mA	180000 Hrs	Plastic	Aluminum	10.8 VDC	13.2 VDC	CSA TUV UL	47 dB	100.7 g	0.222 lb	Ball	8650 RPM	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	25 mm	12 VDC	38.8 CFM	1.09 m³/min	Tubeaxial	4 Wire Leads	181.8 Pa	0.73 in H2O	60 mm	60 mm
Sanyo Denki America Inc. 9LG0612H4D001	0.17 A	180000 Hrs	Plastic	Aluminum	10.8 VDC	13.2 VDC	CSA TUV UL	35 dB	100.7 g	0.222 lb	Ball	6150 RPM	-20 ░C	70 °C	Locked Rotor Sensor	25 mm	12 VDC	27.5 CFM	0.77 m³/min	Tubeaxial	3 Wire Leads	96.9 Pa	0.389 in H2O	60 mm	60 mm
Sanyo Denki America Inc. 9LG0612P4S001	0.67 A	180000 Hrs	Plastic	Aluminum	10.8 VDC	13.2 VDC	CSA TUV UL	53 dB	100.7 g	0.222 lb	Ball	11000 RPM	-20 ░C	70 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	25 mm	12 VDC	49.4 CFM	1.38 m³/min	Tubeaxial	4 Wire Leads	299.9 Pa	1.204 in H2O	60 mm	60 mm	8.04 W
