NCS214R Series

Current Sense Amplifier, 26V, Low-/High-Side Voltage Out, Bidirectional Current Shunt Monitor

Catalog

Current Sense Amplifier, 26V, Low-/High-Side Voltage Out, Bidirectional Current Shunt Monitor

Part	Number of Circuits	Slew Rate	Current - Input Bias	Voltage - Input Offset	-3db Bandwidth	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type	Supplier Device Package	Mounting Type	Amplifier Type	Current - Supply	Voltage - Supply Span (Min) [Min]
ON Semiconductor NCS214SQT2G	1	0.4 V/µs	60 µA	0.55 µV	60 kHz	26 V	125 °C	-40 °C	6-TSSOP SC-88 SOT-363	Rail-to-Rail	SC-88 SC70-6 SOT-363	Surface Mount	Zero-Drift	65 µA	2.7 V
ON Semiconductor NCS214RSQT2G	1	1 V/µs	39 µA	1 µV	60 kHz	26 V	125 °C	-40 °C	6-TSSOP SC-88 SOT-363	Rail-to-Rail	SC-88 SC70-6 SOT-363	Surface Mount	Current Sense	40 µA	2.2 V

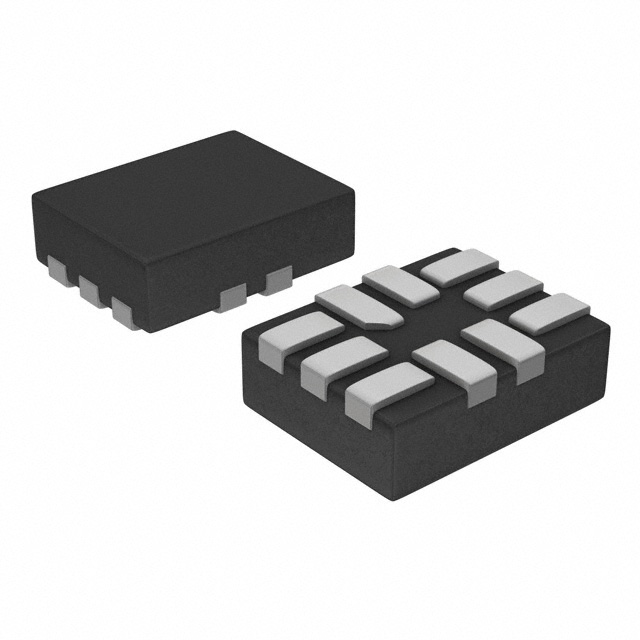

ON Semiconductor NCS214RMUTAG	1	1 V/µs	39 µA	1 µV	60 kHz	26 V	125 °C	-40 °C	10-UFQFN	Rail-to-Rail	10-UQFN (1.4x1.8)	Surface Mount	Current Sense	40 µA	2.2 V

Catalog

Current Sense Amplifier, 26V, Low-/High-Side Voltage Out, Bidirectional Current Shunt Monitor

Key Features

• Wide Common Mode Input Range: -0.3 to 26V

• Low Offset Voltage: ±100 µV max.

• Low Offset Drift: 0.5 µV/°C max.

• Supply Voltage: 2.2 to 26 V

Description

The NCS214R and NCV214R (AEC- Q100 qualified) are voltage output, current sense amplifiers that can measure voltage across shunts at common−mode voltages from −0.3 V to 26 V, independent of supply voltage. With a fixed gain of 100V/V, the low offset of the zero−drift architecture enables current sensing across the shunt with maximum vooltage drops as low as 10 mV full−scale. These devices can operate from a single +2.2 V to +26 V power supply, drawing a maximum of 80 µA of supply current. Available in SC70-6 and UQFN10 packages.Additional gain options are available: NCS213R (50 V/V), NCS210R (200 V/V), NCS211R (500 V/V)
