9055-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

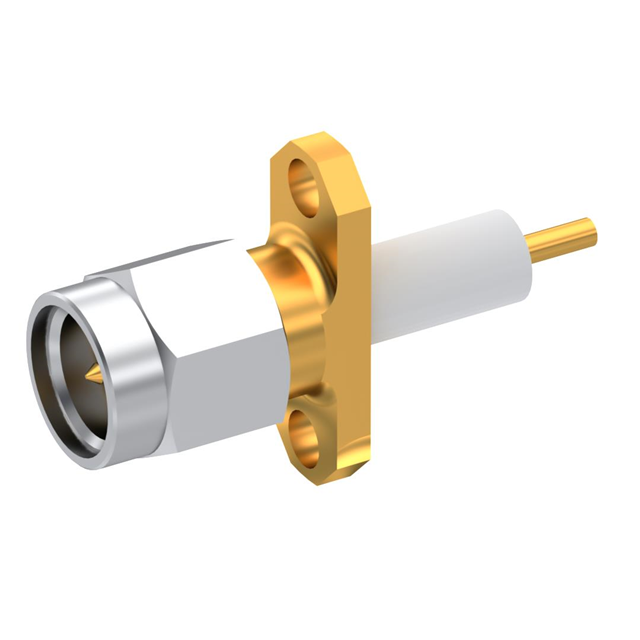

SMA / STRAIGHT PLUG RECEPTACLE M
| Part | Mating Cycles | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Finish | Features | Number of Ports | Fastening Type | Connector Style | Mounting Feature | Contact Termination | Shield Termination | Connector Type | Center Contact Material | Impedance | Mounting Type | Frequency - Max [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | -65 ░C | 165 °C | Gold | Gold | Extended Insulation | 1 | Threaded | SMA | Flange | Solder | Solder | Plug Male Pin | Beryllium Copper | 50 Ohms | Panel Mount Through Hole | 18 GHz | Gold |
