9541 Series
Manufacturer: Belden Inc.
Beta
⌘K

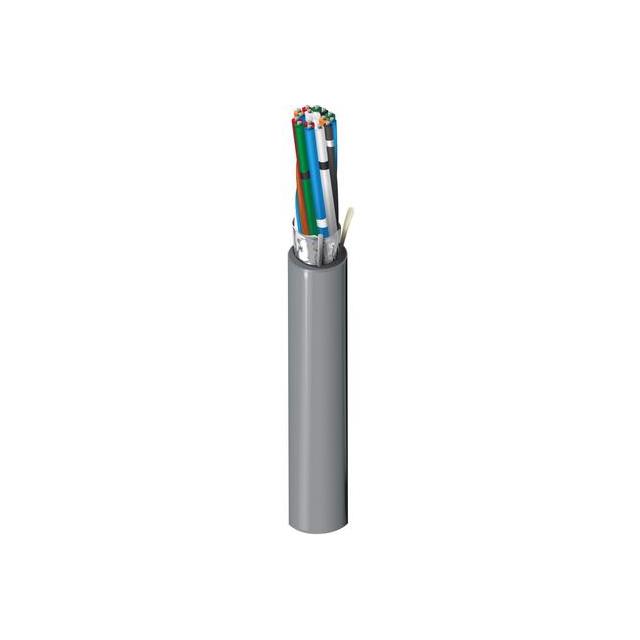

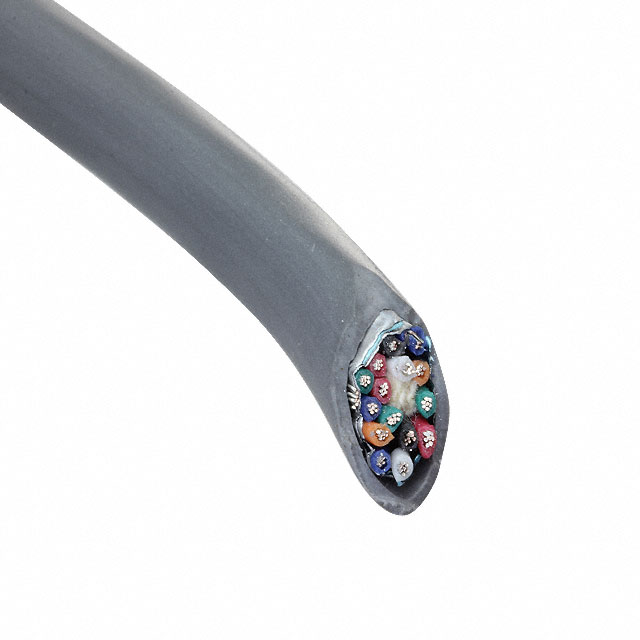

CABLE 15COND 24AWG CHROME
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Shield Type | Features | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket Color | Wire Gauge | Conductor Material | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | 15 | 7.21 mm | 0.284 in | 300 VDC | Computer | 7 | 32 AWG | Multi-Conductor | Chrome | 24 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 0.813 mm | 0.032 in | 80 °C | -30 ░C | ||
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | 15 | 7.21 mm | 0.284 in | Computer | 7 | 32 AWG | Multi-Conductor | Chrome | 24 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 80 °C | -30 ░C | 152.4 m | 500 ft | ||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | 15 | 7.21 mm | 0.284 in | 300 VDC | Computer | 7 | 32 AWG | Multi-Conductor | Chrome | 24 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 0.813 mm | 0.032 in | 80 °C | -30 ░C | 304.8 m | 1000 ft |
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | 15 | 7.21 mm | 0.284 in | 300 VDC | Computer | 7 | 32 AWG | Multi-Conductor | Chrome | 24 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 0.813 mm | 0.032 in | 80 °C | -30 ░C | 152.4 m | 500 ft |
