3188 Series

Catalog

PIDG R 22-16 COMM 22-18 MIL 4

Part	Length - Overall [x]	Length - Overall	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Terminal Type	Contact Material	Thickness	Thickness	Color	Insulation	Material - Insulation	Mounting Type	Stud/Tab Size	Contact Finish	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Features	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [Max] [diameter]	Stud/Tab Size

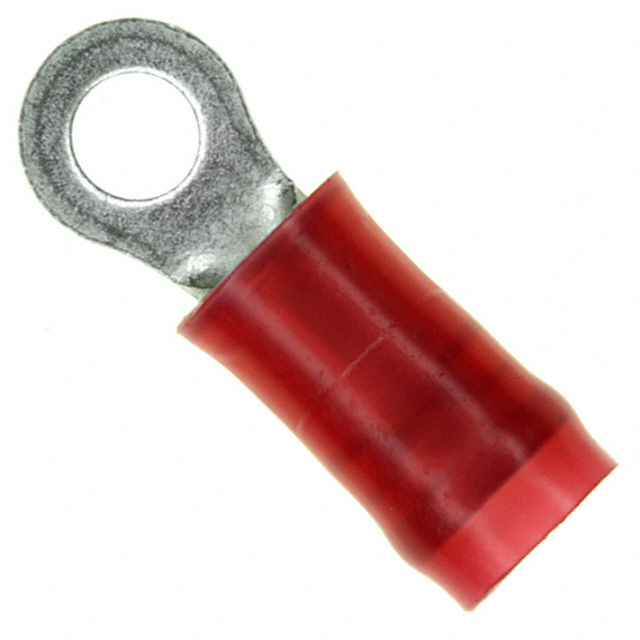

TE Connectivity Raychem Cable Protection 31880	0.672 "	17.07 mm	Crimp	5.54 mm	0.218 in	Circular	Copper	0.031 in	0.79 mm	Red	Insulated	Nylon Polyamide (PA)	Free Hanging (In-Line)	4 Stud	Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	22 AWG	16 AWG

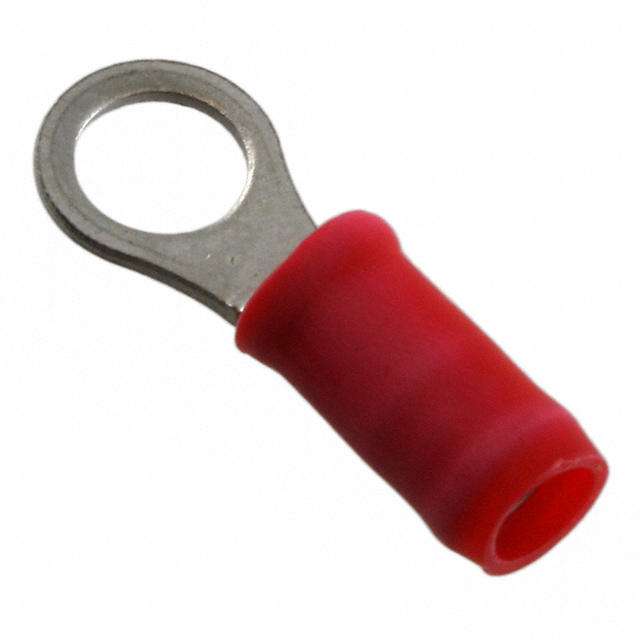

TE Connectivity Raychem Cable Protection 31884	0.797 "		Crimp			Circular	Copper	0.031 in	0.79 mm	Red	Insulated	Vinyl	Free Hanging (In-Line)	10 Stud	Tin	0.125 "	0.08 in		2.03 mm	Serrated Termination	22 AWG	16 AWG	20.24 mm	7.14 mm	0.281 in	3.18 mm

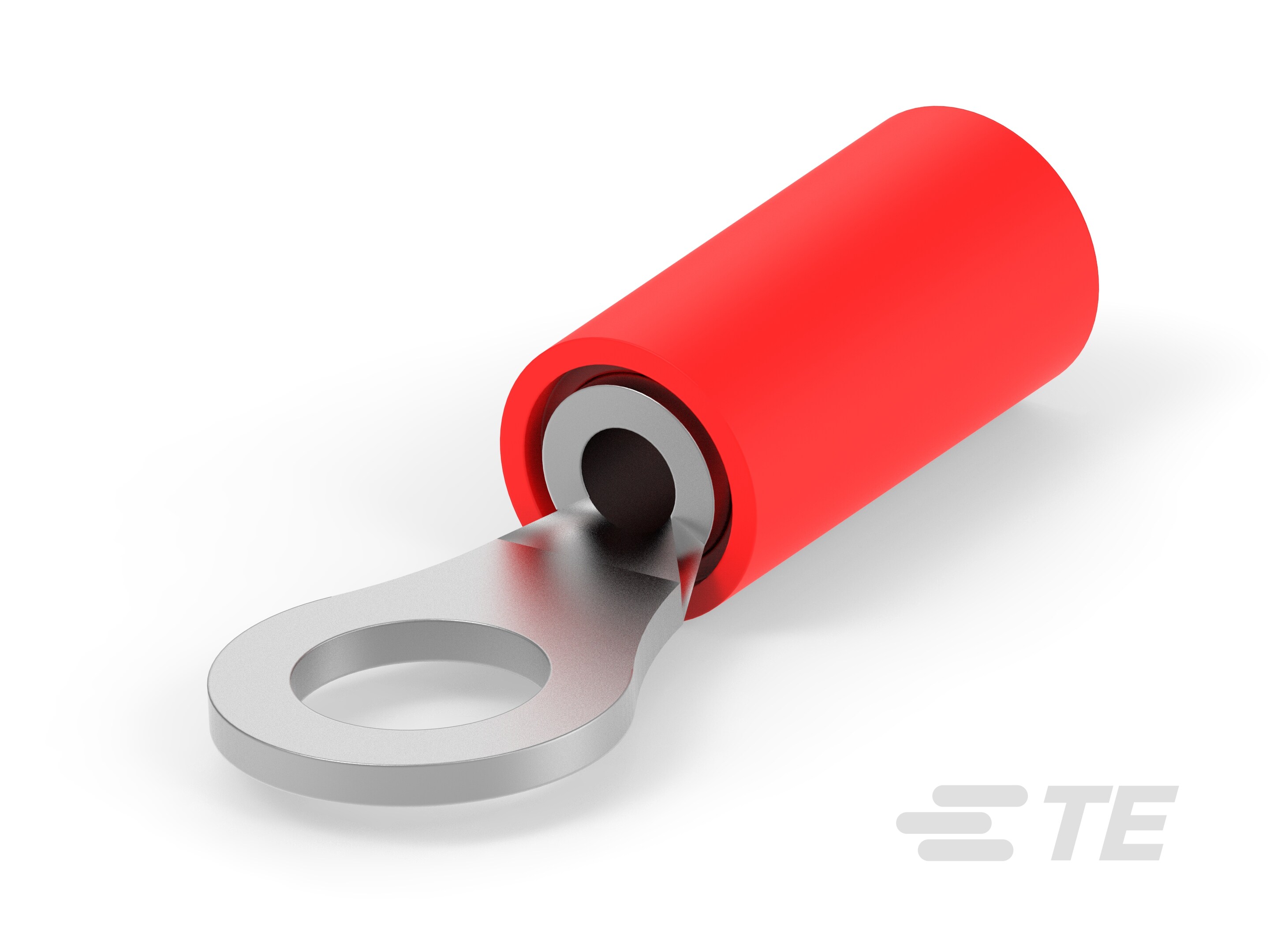

TE Connectivity Raychem Cable Protection 31886	0.797 "		Crimp			Circular	Copper	0.031 in	0.79 mm	Red	Insulated	Nylon Polyamide (PA)	Free Hanging (In-Line)		Tin	0.14 in	0.105 in	3.56 mm	2.67 mm	Serrated Termination	22 AWG	16 AWG	20.24 mm	7.14 mm	0.281 in		8 Stud
