EASV3020 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED GREEN/RED CLEAR 3SMD R/A

Part	Supplier Device Package	Lens Style	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Viewing Angle	Color	Mounting Type	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Wavelength - Dominant	Height (Max) [z]	Lens Size [y]	Lens Size [x]	Lens Transparency	Configuration	Wavelength - Dominant	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating	Current - Test	Wavelength - Dominant [custom]	Height (Max) [Max] [z]	Millicandela Rating [custom]
Everlight Electronics Co Ltd EASV3020GRA0	3-SMD	Rectangle with Domed Top	2 V 2 V	50mcd Green 50mcd Red	3-SMD No Lead Exposed Pad	3 mm	2 mm	Colorless	120 °	Green Red	Right Angle Surface Mount	20 mA	20 mA	575 nm 650 nm	573 nm 639 nm	1.1 mm	1 mm	2 mm	Clear	Common Anode
Everlight Electronics Co Ltd EASV3020BRA0	4-SMD	Rectangle with Domed Top	2 V 3 V		4-SMD No Lead	3 mm	2 mm	Colorless	120 °	Blue Red	Right Angle Surface Mount			468 nm 632 nm		1.1 mm	1 mm	2 mm	Clear	Common Anode	470nm Blue 624nm Red	20mA Blue 20mA Red	28 mcd	30 mcd
Everlight Electronics Co Ltd EASV3020RGA1	4-SMD	Rectangle with Domed Top	2 V 2 V		4-SMD No Lead	3 mm	2 mm	Colorless	120 °	Green Red	Right Angle Surface Mount	20 mA	20 mA	575 nm 632 nm		1.1 mm	1 mm	2 mm	Clear	Common Anode	573nm Green 624nm Red				40 mcd 54 mcd
Everlight Electronics Co Ltd EASV3020GA0	2-SMD	Rectangle with Domed Top	3.5 V		2-SMD No Lead	3 mm	2 mm	Colorless	120 °	Green	Right Angle Surface Mount			518 nm		1.1 mm	1 mm	2 mm	Clear	Standard						20 mA	528 nm
Everlight Electronics Co Ltd EASV3020RA1	2-SMD	Rectangle with Domed Top	2.05 V		2-SMD No Lead	3 mm	2 mm	Colorless	120 °	Red	Right Angle Surface Mount			650 nm	637.5 nm		1 mm	2 mm	Clear						50.25 mcd	20 mA		1.2 mm

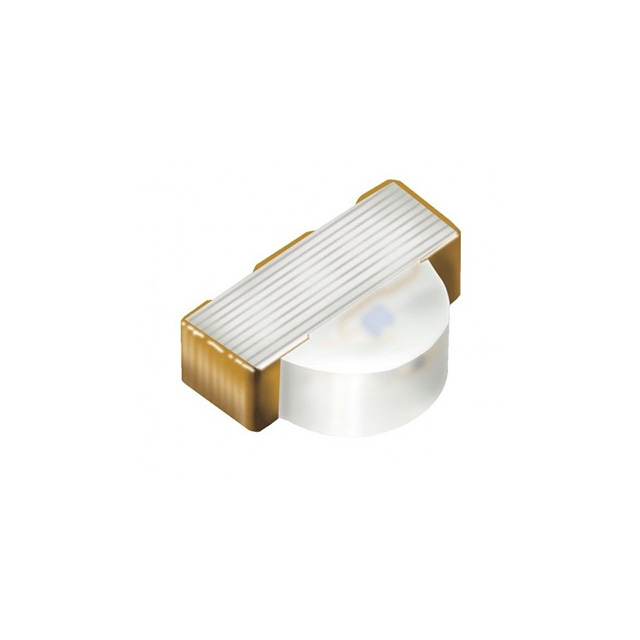

Everlight Electronics Co Ltd EASV3020BA2	2-SMD	Rectangle with Domed Top	3.3 V		2-SMD No Lead	3 mm	2 mm	Colorless	120 °	Blue	Right Angle Surface Mount			468 nm	471 nm	1 mm	1 mm	2 mm	Clear	Standard					79 mcd	20 mA
Everlight Electronics Co Ltd EASV3020RGA0	4-SMD	Rectangle with Domed Top	2 V 3.3 V		4-SMD No Lead	3 mm	2 mm	Colorless	120 °	Green Red	Right Angle Surface Mount	20 mA	20 mA	518 nm 632 nm	525 nm 624 nm	1.1 mm	1 mm	2 mm	Clear	Common Anode				126 mcd					199 mcd
