073386 Series
Manufacturer: Molex
Beta
⌘K

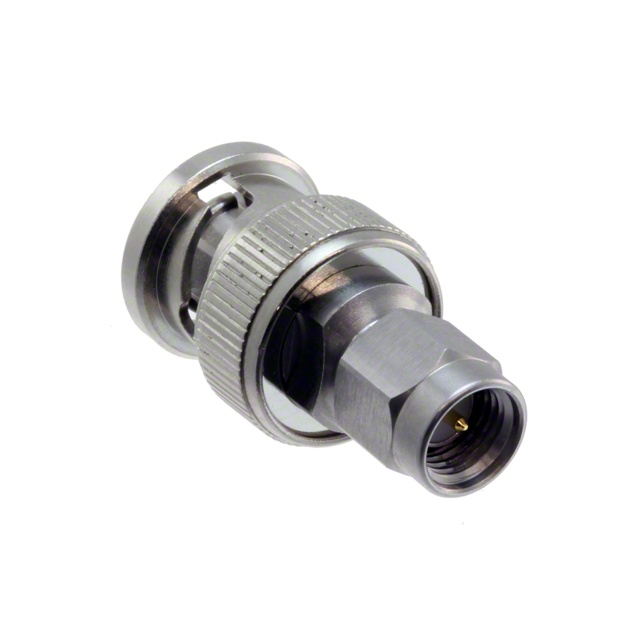

CONN ADAPT BNC PLUG TO SMA PLUG
| Part | Center Gender | Mounting Type | Dielectric Material | Center Contact Plating | Impedance | Convert To (Adapter End) | Style | Adapter Series | Adapter Type | Center Contact Material | Fastening Type | Body Material | Conversion Type | Body Finish | Convert From (Adapter End) | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Male to Male | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Male Pin SMA Plug | Straight | BNC to SMA | Plug to Plug | Brass | Bayonet Lock Threaded | Brass Stainless Steel | Between Series | Nickel; Passivated | BNC Plug Male Pin | |

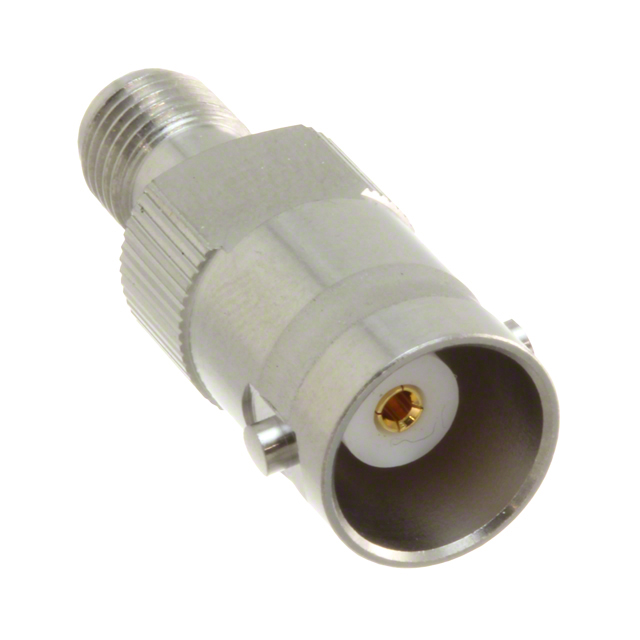

 Molex | Female to Female | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Female Socket SMA Jack | Straight | BNC to SMA | Jack to Jack | Beryllium Copper | Bayonet Lock Threaded | Stainless Steel | Between Series | BNC Jack Female Socket | ||

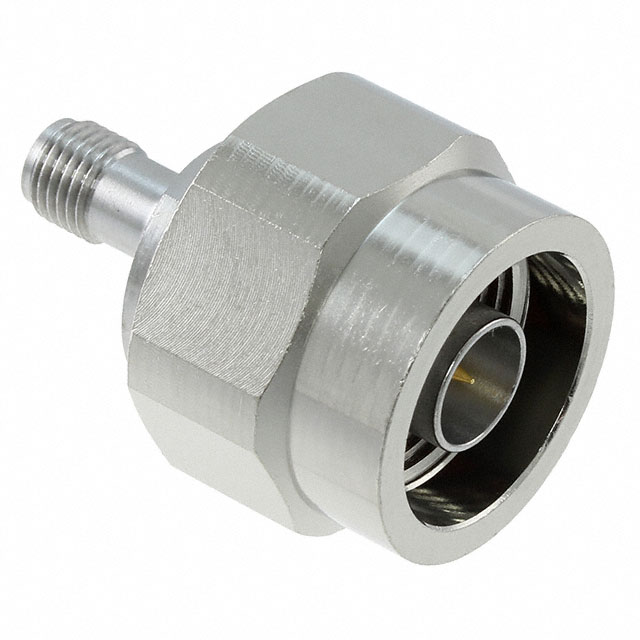

 Molex | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Male Pin N Plug | Straight | Plug to Jack | Beryllium Copper | Stainless Steel | Between Series | Female Socket SMA Jack | |||||

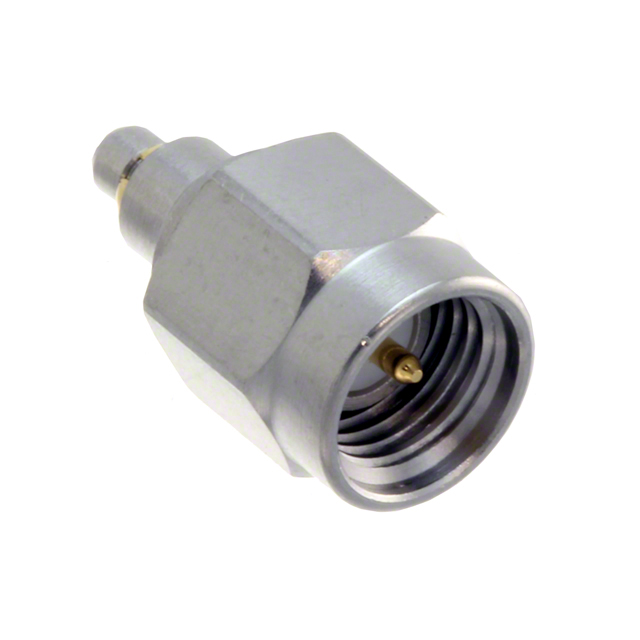

Molex | Male to Male | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Male Pin SMB Jack | Straight | SMA to SMB | Plug to Jack | Beryllium Copper | Snap-On Threaded | Stainless Steel | Between Series | SMA Plug Male Pin | ||
 Molex | Male to Male | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Male Pin MMCX Plug | Straight | SMA to MMCX | Plug to Plug | Brass | Snap-On Threaded | Stainless Steel | Between Series | SMA Plug Male Pin | 6000 MHz | |
Molex | Male to Male | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Male Pin SSMCX Plug | Straight | SMA to SSMCX | Plug to Plug | Brass | Snap-On Threaded | Brass | Between Series | Gold | SMA Plug Male Pin | 6000 MHz |
 Molex | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Male Pin SMA Plug | Straight | Plug to Jack | Beryllium Copper | Snap-On Threaded | Brass Stainless Steel | Between Series | Nickel; Passivated | MCRF Jack Female Socket | 6000 MHz | ||
Molex | Free Hanging (In-Line) | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Female Socket RP-MMCX Plug | Straight | SMA to RP-MMCX | Plug to Plug | Beryllium Copper | Snap-On Threaded | Stainless Steel | Between Series | SMA Plug Male Pin | 6000 MHz | ||
Molex | ||||||||||||||||
Molex |
