82R1A Series
Manufacturer: Bourns Inc.
Beta
⌘K

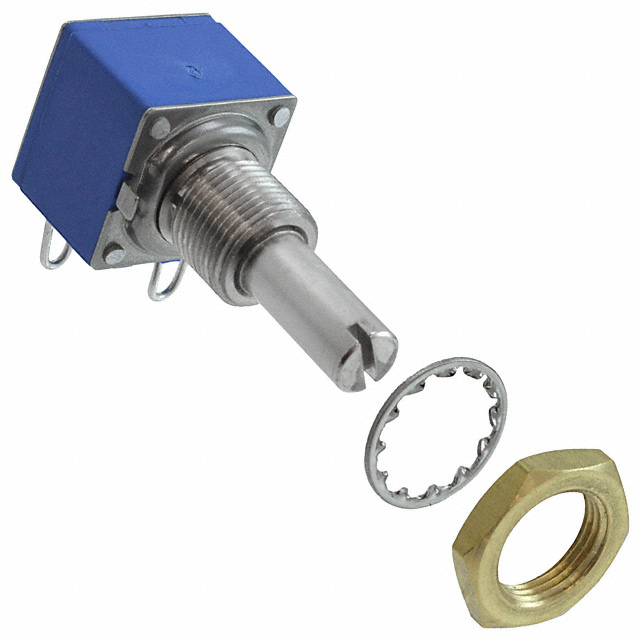

POT 50K OHM 2W CERMET LINEAR
| Part | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Resistance (Ohms) [custom] | Adjustment Type | Taper | Actuator Length [x] | Actuator Length [x] | Termination Style | Number of Gangs | Actuator Type | Tolerance | Resistive Material | Built in Switch | Temperature Coefficient | Rotation | Mounting Type | Power (Watts) | Number of Turns | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Bushing Thread | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | 50 kOhms | User Defined | Linear | 22 mm | 0.866 in | Solder Hook | 1 | Slotted | 10 % | Cermet | None | 150 ppm/°C | 300 ░ | Panel Mount | 2 W | 1 | 6 mm | 0.236 in | M10 | 0.75 | |
Bourns Inc. | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | User Defined | Linear | 22 mm | 0.866 in | Solder Hook | 1 | Slotted | 10 % | Cermet | None | 150 ppm/°C | 300 ░ | Panel Mount | 2 W | 1 | 6 mm | 0.236 in | M10 | 0.75 | 10k |
