G3R350 Series

Catalog

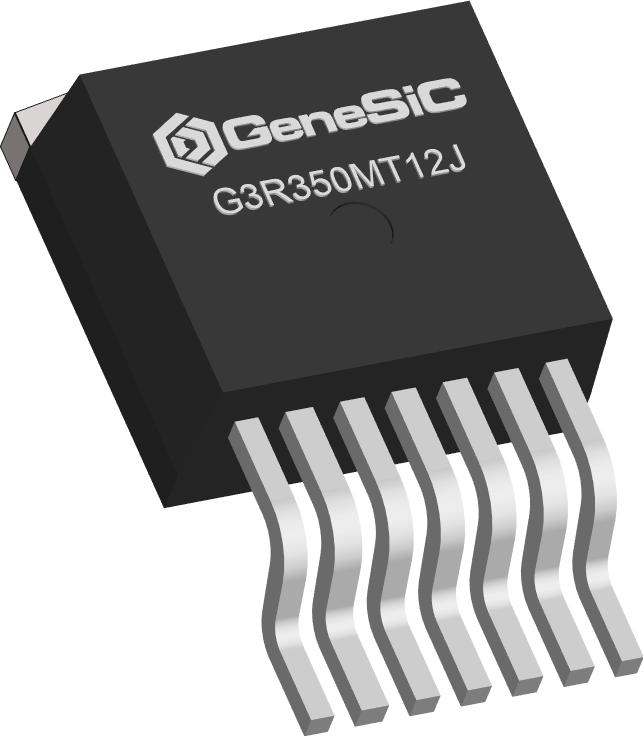

TRANS MOSFET N-CH SIC 1.2KV 10A 8-PIN(7+TAB) TO-263

Part	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max)	Mounting Type	FET Type	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package
GeneSiC Semiconductor G3R350MT12J	420 mOhm	2.69 V	11 A	12 nC	15 V	334 pF	75 W	Surface Mount	N-Channel	1.2 kV	15 V	175 °C	-55 °C	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	TO-263-7
GeneSiC Semiconductor G3R350MT12D	420 mOhm	2.69 V	11 A	12 nC	15 V	334 pF	74 W	Through Hole	N-Channel	1.2 kV	15 V	175 °C	-55 °C	TO-247-3	TO-247-3
