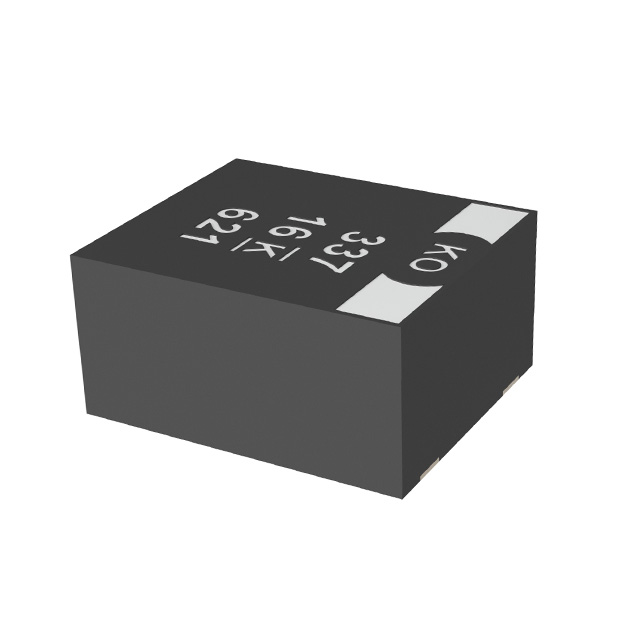

T523W Series

Manufacturer: KEMET

Catalog

CAP TANT POLY 100UF 16V 2917

Part	Package / Case	ESR (Equivalent Series Resistance)	Mounting Type	Voltage - Rated	Tolerance	Manufacturer Size Code	Height - Seated (Max) [Max]	Height - Seated (Max)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.
KEMET T523W107M016APE0707280	2917 (7343 Metric)	70 mOhm	Surface Mount	16 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	105 ░C	100 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W157M016APE1007280	2917 (7343 Metric)	100 mOhm	Surface Mount	16 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	105 ░C	150 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W157M016APE070	2917 (7343 Metric)	70 mOhm	Surface Mount	16 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	105 ░C	150 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W476M035APE090	2917 (7343 Metric)	90 mOhm	Surface Mount	35 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	85 °C	47 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W107M016APE1007280	2917 (7343 Metric)	100 mOhm	Surface Mount	16 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	105 ░C	100 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W476M035APE100	2917 (7343 Metric)	100 mOhm	Surface Mount	35 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	85 °C	47 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W686M016APE0707280	2917 (7343 Metric)	70 mOhm	Surface Mount	16 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	105 ░C	68 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
KEMET T523W157M016APE0707280	2917 (7343 Metric)	70 mOhm	Surface Mount	16 V	20 %	W	0.059 "	1.5 mm	General Purpose	-55 C	105 ░C	150 µF	Molded	0.169 "	7.3 mm	0.287 "	4.3 mm	2000 Hrs
