MFM-15 Series

Catalog

AC/DC CONVERTER 15V 15W

Part	Load Regulation	Line Regulation	Type	Current - Output (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Output 1	Mounting Type	Applications	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Approval Agency
MEAN WELL USA Inc. MFM-15-15	0.5 %	0.3 %	Open Frame	1 A	Universal Input	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	15 W	15 V	Through Hole	Household Appliances Medical	4-DIP Module	80 VAC	264 VAC	1	-35 °C	85 °C	87 %	CB CE cURus EAC TUV
MEAN WELL USA Inc. MFM-15-12	0.5 %	0.3 %	Open Frame	1.25 A	Universal Input	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	15 W	12 V	Through Hole	Household Appliances Medical	4-DIP Module	80 VAC	264 VAC	1	-35 °C	85 °C	86.5 %	CB CE cURus EAC TUV

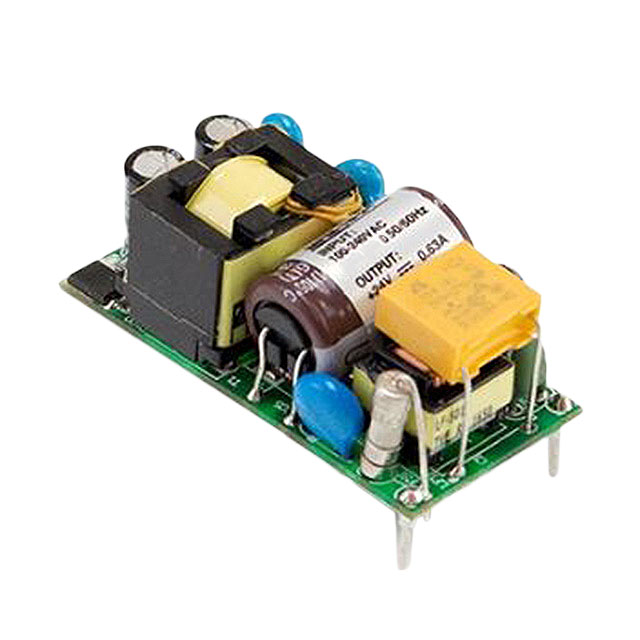

MEAN WELL USA Inc. MFM-15-3.3	0.5 %	0.3 %	Open Frame	3.5 A	Universal Input	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	12 W	3.3 V	Through Hole	Household Appliances Medical	4-DIP Module	80 VAC	264 VAC	1	-35 °C	85 °C	83.5 %	CB CE cURus EAC TUV
MEAN WELL USA Inc. MFM-15-24	0.5 %	0.3 %	Open Frame	630 mA	Universal Input	23 mm	49 mm	0.94 in	0.91 in	1.93 in	23.8 mm	15 W	24 V	Through Hole	Household Appliances Medical	4-DIP Module	80 VAC	264 VAC	1	-35 °C	85 °C	86.5 %	CB CE cURus EAC TUV
