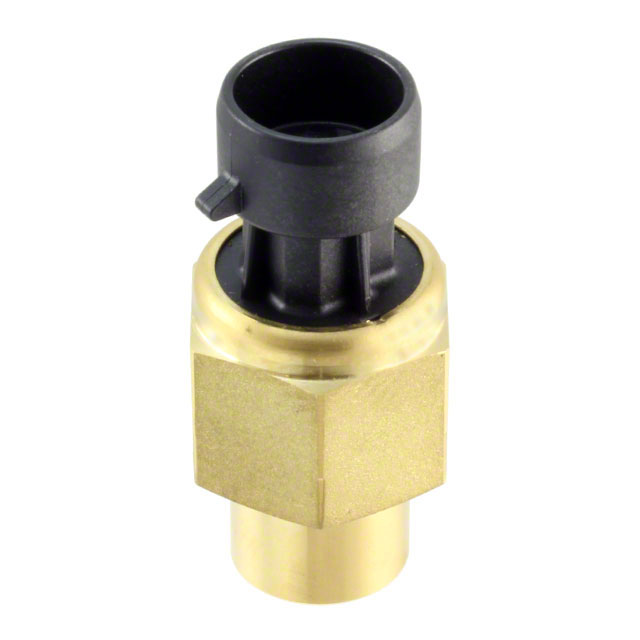

PX3AF1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 200PSIA 7/16" 4.5V

Part	Output Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure	Operating Pressure	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Port Size [x]	Port Size [x]	Port Size	Package / Case	Features	Output [Min]	Output [Max]	Accuracy	Pressure Type	Maximum Pressure	Maximum Pressure	Applications
Honeywell Sensing and Productivity Solutions PX3AF1BH200PAAAX	Analog Voltage	Connector	4.75 V	5.25 V	450 PSI	3102.64 kPa	1378.95 kPa	200 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	0.5 V	4.5 V	1 %
Honeywell Sensing and Productivity Solutions PX3AF1BH004BACHX	Analog Current	Connector	8 V	30 VDC	246.56 PSI	1700 kPa	4 bar	58.02 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %
Honeywell Sensing and Productivity Solutions PX3AF1BH100PACHX	Analog Current	Connector	8 V	30 VDC	450 PSI	3102.64 kPa	689.48 kPa	100 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %
Honeywell Sensing and Productivity Solutions PX3AF1BH008BACHX	Analog Current	Connector	8 V	30 VDC	449.62 PSI	3100 kPa	8 bar	116.03 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %
Honeywell Sensing and Productivity Solutions PX3AF1BH040BSCHX	Analog Current	Connector	8 V	30 VDC			4000 kPa	580.15 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %	Sealed Gauge	6900 kPa	1000.76 PSI
Honeywell Sensing and Productivity Solutions PX3AF1BH500PSCHX	Analog Current	Connector	8 V	30 VDC	1000 PSI	6894.76 kPa	3447.38 kPa	500 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX3AF1BH150PSAAX	Analog Voltage	Connector	4.75 V	5.25 V	450 PSI	3102.64 kPa	1034.21 kPa	150 PSI	Threaded	125 °C	-40 °C	11.11 mm	0.4375 "	Female	Cylinder	Temperature Compensated	0.5 V	4.5 V	1 %	Sealed Gauge			Industrial Automation
Honeywell Sensing and Productivity Solutions PX3AF1BH300PSCHX	Analog Current	Connector	8 V	30 VDC	300 PSI	2068.43 kPa	2068.43 kPa	300 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX3AF1BH300PAAAX	Analog Voltage	Connector	4.75 V	5.25 V	300 PSI	2068.43 kPa	2068.43 kPa	300 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	0.5 V	4.5 V	1 %
Honeywell Sensing and Productivity Solutions PX3AF1BH025BACHX	Analog Current	Connector	8 V	30 VDC			25 bar	362.59 PSI	Threaded	125 °C	-30 ░C	11.11 mm	0.4375 "	Female	Cylinder Threaded	Temperature Compensated	4 mA	20 mA	1 %		6900 kPa	1000.76 PSI
