6609106 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Termination	Termination	Termination	Switch Features	Approval Agency	Connector Type	Connector Style	Filter Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Current Rating - Filter	Mounting Type	Features	Panel Cutout Dimensions	Fuse Holder, Drawer

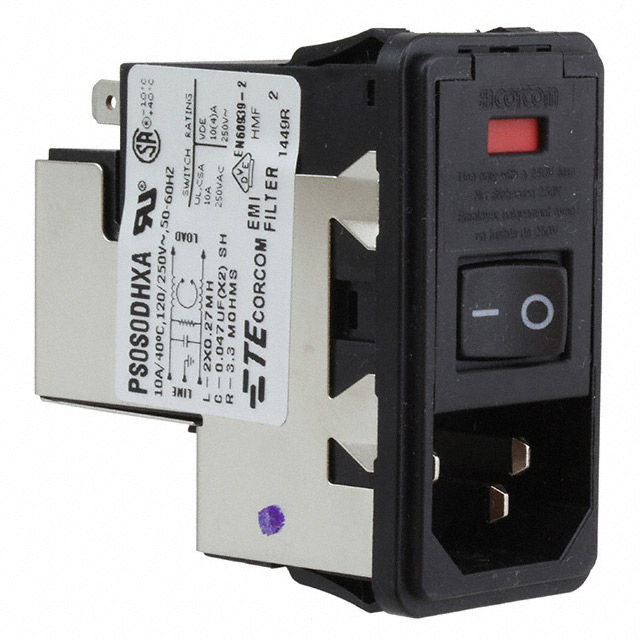

TE Connectivity Corcom Filters 4-6609106-9	120 VAC	10 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	10 A	Panel Mount Snap-In	Shielded	Variable Size	Twin Fused
TE Connectivity Corcom Filters 4-6609106-8	120 VAC	6 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	6 A	Panel Mount Snap-In	Shielded	Variable Size	Twin Fused
TE Connectivity Corcom Filters 3-6609106-8	120 VAC	6 A	Quick Connect	0.187 "	4.7 mm		CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	6 A	Panel Mount Snap-In	Voltage Selector	Variable Size	Twin Fused

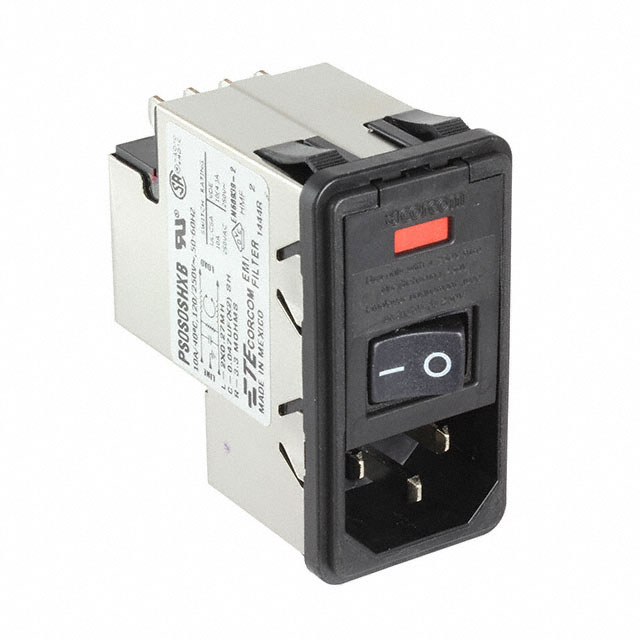

TE Connectivity Corcom Filters 4-6609106-5	120 VAC	10 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	10 A	Panel Mount Snap-In	Conversion Clip	Variable Size	Fuse Holder

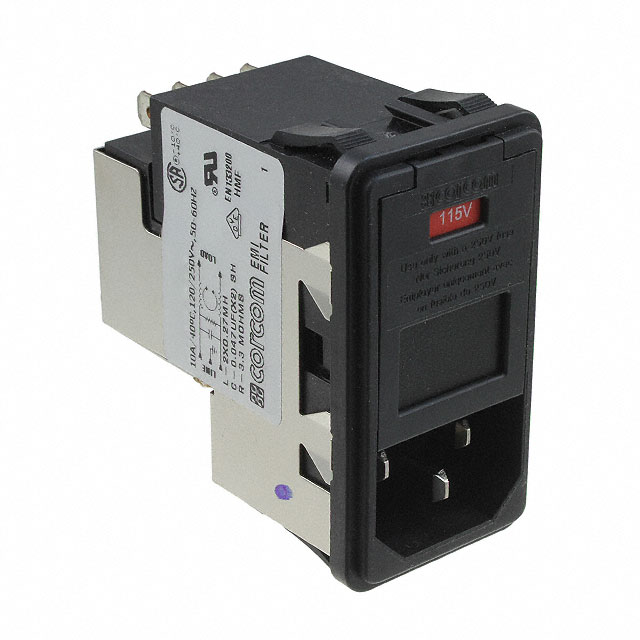

TE Connectivity Corcom Filters 4-6609106-4	120 VAC	10 A	Quick Connect	0.187 "	4.7 mm		CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	10 A	Panel Mount Snap-In	Shielded Voltage Selector	Variable Size	Twin Fused
TE Connectivity Corcom Filters 5-6609106-2	120 VAC	3 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	3 A	Panel Mount Snap-In	Conversion Clip Shielded	Variable Size	Fuse Holder

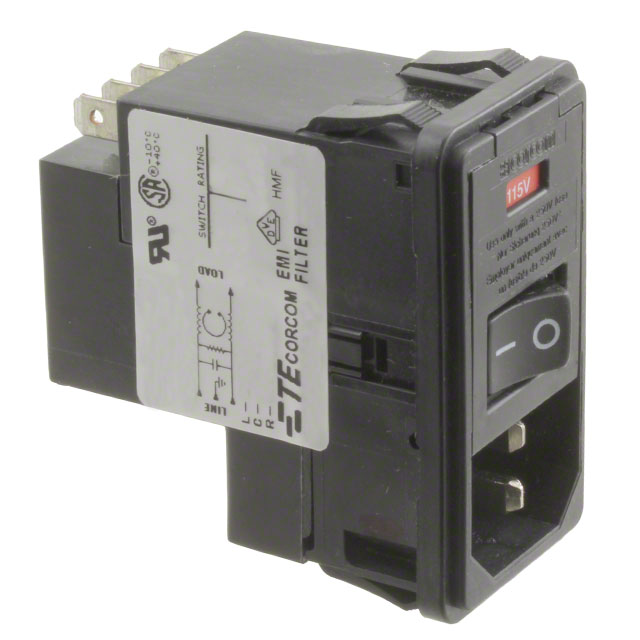

TE Connectivity Corcom Filters 1-6609106-3	120 VAC	3 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	3 A	Panel Mount Snap-In	Conversion Clip Voltage Selector	Variable Size	Fuse Holder
TE Connectivity Corcom Filters 5-6609106-3	120 VAC	10 A	Quick Connect	0.187 "	4.7 mm		CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	10 A	Panel Mount Snap-In	Conversion Clip	Variable Size	Fuse Holder

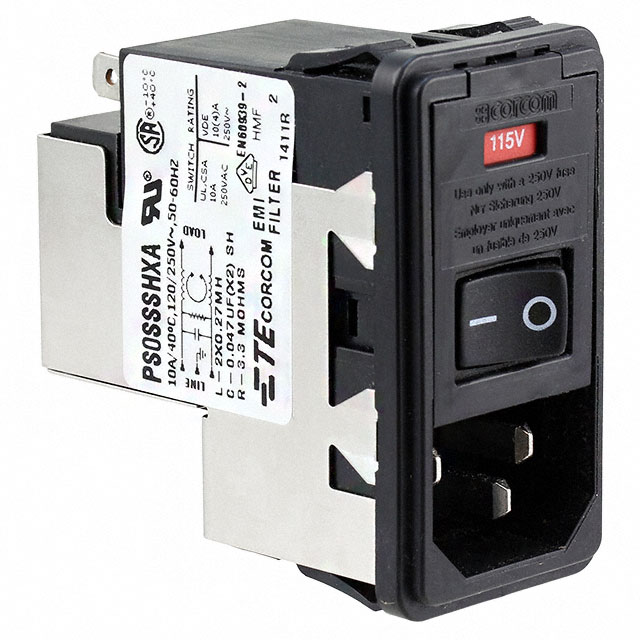

TE Connectivity Corcom Filters 2-6609106-1	120 VAC	10 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	10 A	Panel Mount Snap-In	Conversion Clip Shielded Voltage Selector	Variable Size	Fuse Holder
TE Connectivity Corcom Filters 1-6609106-8	120 VAC	10 A	Quick Connect	0.187 "	4.7 mm	Switch On-Off	CSA UL VDE	Receptacle Male Blades - Module	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	0.79 mm	2.9 mm	0.031 "	0.114 in	10 A	Panel Mount Snap-In	Conversion Clip	Variable Size	Fuse Holder
