4993-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

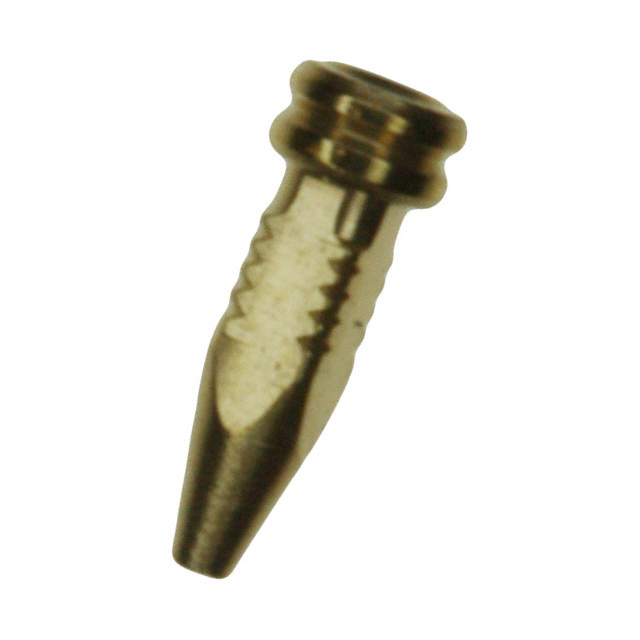

CONN PIN RCPT .012-.017 PRESSFIT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Socket Depth | Socket Depth | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Material | Contact Finish | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | 2.54 mm | 0.1 in | 0.017 " | 0.012 " | 0.3 mm | 0.43 mm | 30 Áin | 0.76 Ám | 1.4 mm | 0.055 in | 3.94 mm | 0.155 in | Beryllium Copper | Gold | 1.12 mm | 1.04 mm | 0.044 in | 0.041 in | 0.028 in | 0.71 mm | No Tail |
