A70F1C-P Series
Manufacturer: ODU
Beta
⌘K

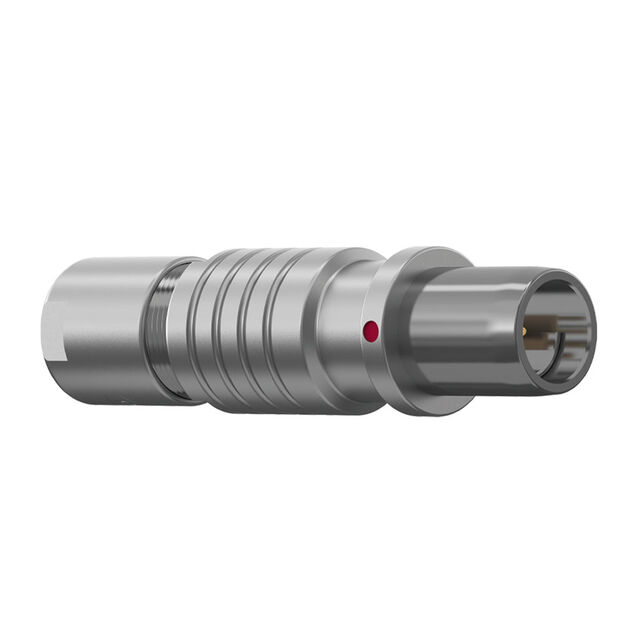

ODU MINI-SNAP PLUG, STY 7, SZ 0,
| Part | Ingress Protection | Connector Type | Shielding | Number of Positions | Primary Material | Shell Finish | Material Flammability Rating | Contact Material | Insert Material | Applications | Features | Orientation [custom] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Shell Material | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Color | Fastening Type | Contact Finish - Mating | Current Rating (Amps) | Shell Size - Insert [custom] | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 - Dust Protected | Plug Male Pins | Unshielded | 5 | Metal | Chrome over Nickel | UL94 V-0 | Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Backshell | 1 | 0.157 in | 4 mm | 0.138 " | 3.5 mm | Brass | Free Hanging (In-Line) | 120 °C | -40 C | 200 V | Silver | Push-Pull | Gold | 7.5 A | 0 | Brass Chrome over Nickel | |
IP50 - Dust Protected | Plug Male Pins | Unshielded | 7 | Metal | Chrome over Nickel | UL94 V-0 | Brass | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Backshell | 1 | 0.197 in | 5 mm | 0.177 in | 4.5 mm | Brass | Free Hanging (In-Line) | 120 °C | -40 C | 300 VDC | Silver | Push-Pull | Gold | 4 A | 0 | Brass Chrome over Nickel |
