0956-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

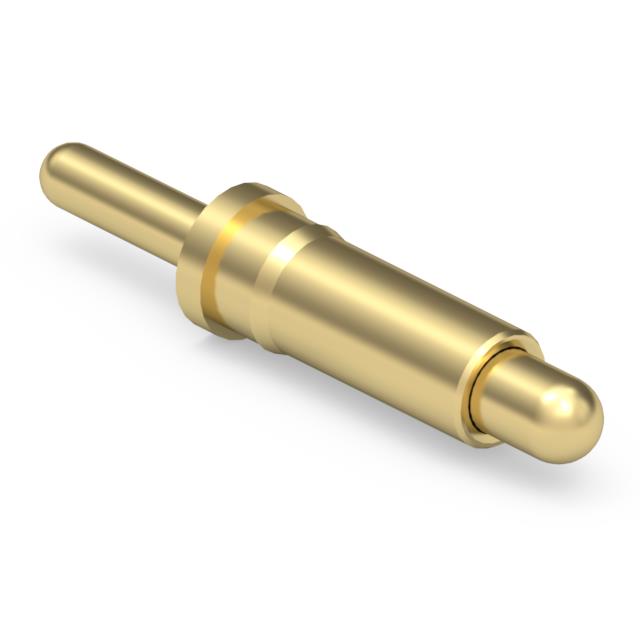

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Contact Finish Thickness | Contact Finish Thickness | Recommended Working Height | Recommended Working Height | Contact Material | Operating Force - Mid Compression | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Operating Force - Initial | Current Rating (Amps) | Contact Finish | Minimum Working Height [Min] | Minimum Working Height [Min] | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | 0.072 in | 1.83 mm | 20 µin | 0.51 µm | 0.206 in | 5.24 mm | Brass Alloy | 60 gf | Through Hole | 0.234 in | 5.94 mm | 10 gf | 5.2 A | Gold | 0.179 in | 4.54 mm | 1000000 |
