681M5W1 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DE-5W1, 4 CONTACTS, PLUG, 1, SOLDER
| Part | Dielectric Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Shell Material, Finish | Connector Type | Contact Type | Flange Feature | Features | Current Rating (Amps) | Connector Style | Number of Rows [custom] | Contact Finish Thickness | Contact Finish | Mounting Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Termination | Material Flammability Rating | Number of Positions | Current Rating (Amps) [Max] | Current Rating (Amps) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

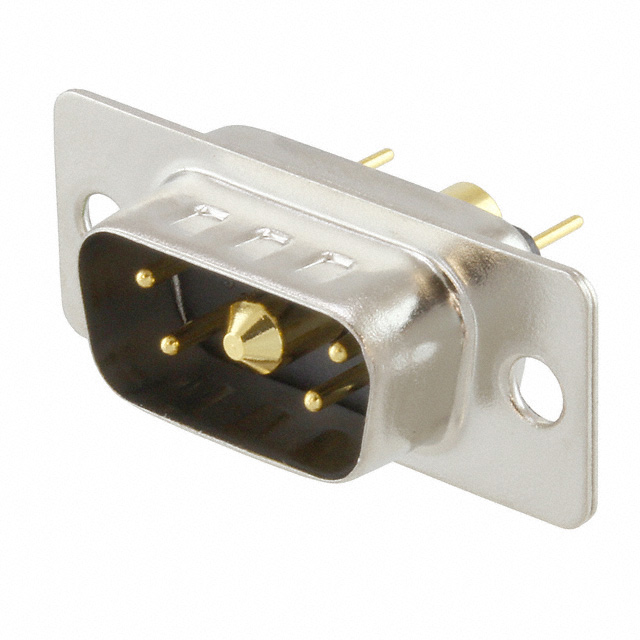

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | -55 C | 125 °C | Copper Alloy | Nickel Plated Steel | Plug Male Pins | Signal and Power | Housing/Shell (Unthreaded) | Grounding Indents | 5 A 40 A | Combo D-Sub | 2 | Flash | Gold | Panel Mount Through Hole | 1 | 5W1 DE E | Solder | UL94 V-0 | 5 | ||

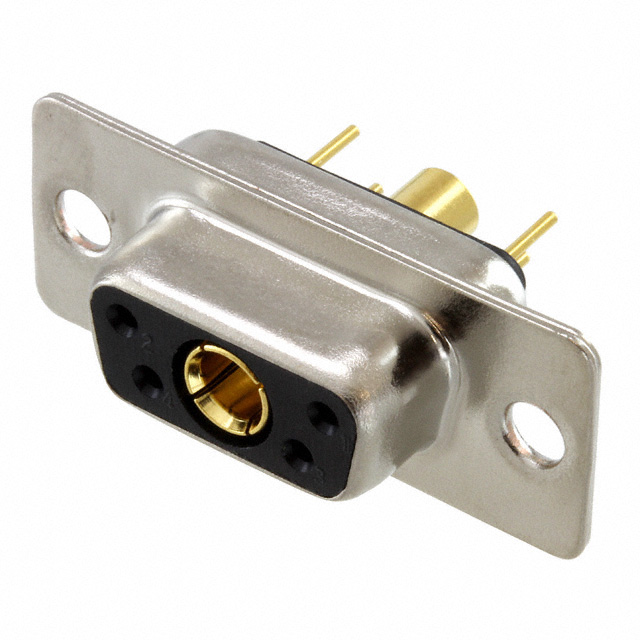

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | -55 C | 125 °C | Copper Alloy | Nickel Plated Steel | Receptacle Female Sockets | Signal and Power | Housing/Shell (Unthreaded) | 5 A | Combo D-Sub | 2 | Flash | Gold | Panel Mount Through Hole | 1 | 5W1 DE E | Solder | UL94 V-0 | 5 | 40 A | 20 A |
