1517 Series

Catalog

CONN BARRIER STRP 17CIRC 0.375"

Part	Material Flammability Rating	Mounting Type	Operating Temperature	Terminal Screw Material	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Top Termination	Bottom Termination	Terminal Block Type	Number of Wire Entries	Features	Number of Rows [custom]	Number of Circuits	Current Rating (Amps)	Pitch	Pitch	Barrier Type	Terminal Screw Finish

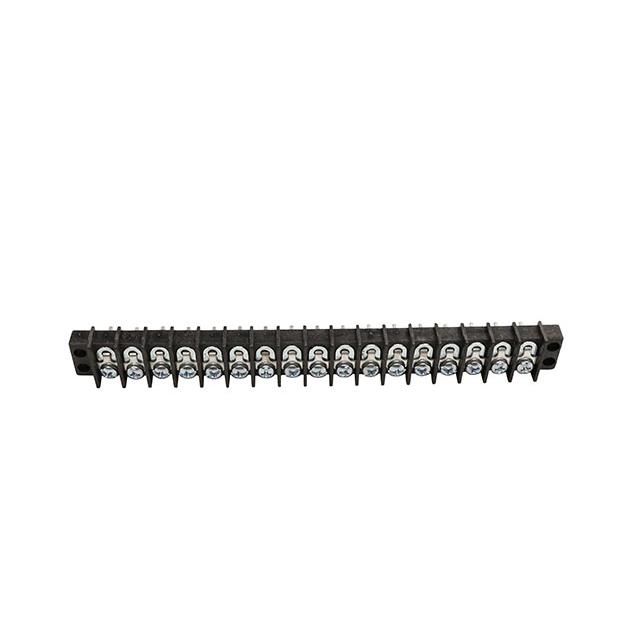

Curtis Industries 1517-Y	UL94 V-0	Chassis Panel Through Hole	110 °C	Steel	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Screws	PC Pin	Barrier Block	34	Flange	2	17	20 A	9.53 mm	0.375 in	2 Wall (Dual)
Curtis Industries 1517-YWY	UL94 V-0	Chassis Panel Through Hole	110 °C	Steel	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Screws	Wire Wrap	Barrier Block	34	Flange	2	17	20 A	9.53 mm	0.375 in	2 Wall (Dual)
Curtis Industries 1517W	UL94 V-0	Chassis Panel	110 °C	Steel	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Screws with Captive Plate	Closed	Barrier Block	34	Flange	2	17	20 A	9.53 mm	0.375 in	2 Wall (Dual)
Curtis Industries 1517-3/4ST	UL94 V-0	Chassis Panel	110 °C		Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Screws with Solder Lugs Single	Closed	Barrier Block	34	Flange	2	17	20 A	9.53 mm	0.375 in	2 Wall (Dual)	Tin
Curtis Industries 1517-ST	UL94 V-0	Chassis Panel	110 °C		Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Dual Screws with Solder Lugs	Closed	Barrier Block	34	Flange	2	17	20 A	9.53 mm	0.375 in	2 Wall (Dual)	Tin
Curtis Industries 1517-YSY	UL94 V-0	Chassis Panel Through Hole	110 °C	Steel	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	Screws	PC Pin	Barrier Block	34	Flange	2	17	20 A	9.53 mm	0.375 in	2 Wall (Dual)
