892-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K

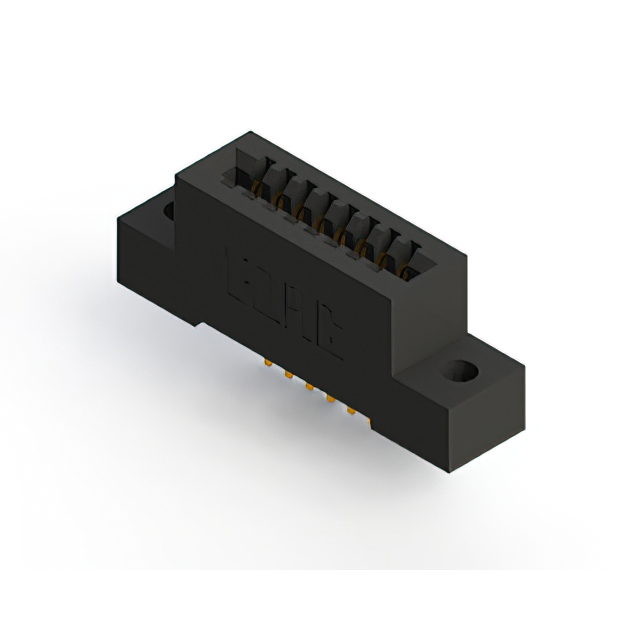

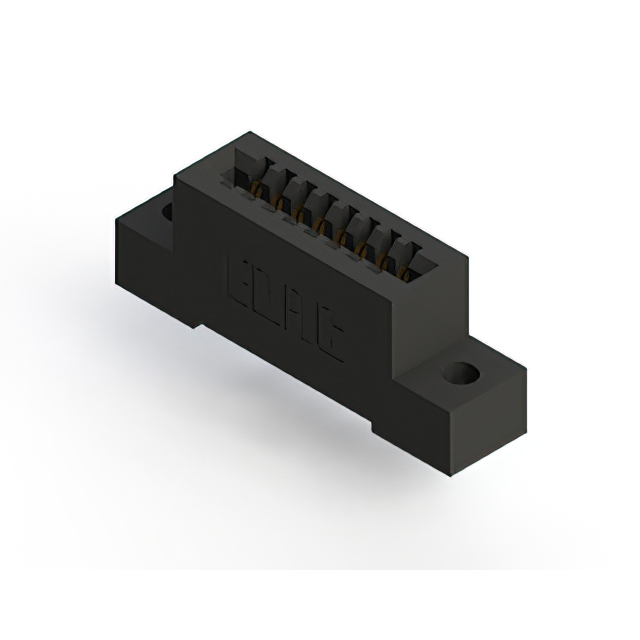

CONN EDGE SINGLE FML 8POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Type | Card Type | Pitch | Pitch | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Number of Positions | Read Out | Number of Rows | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Solder Eyelet(s) | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Wire Wrap | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Solder | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | |||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Solder | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Solder | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Wire Wrap | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Through Hole | Solder Eyelet(s) | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.1 " | 2.54 mm | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | Solder | 8 | 125 °C | -40 C | Copper Alloy | Black | 8 | Single | 1 | Gold | 4-40 Flush Mount Threaded Insert Top Opening |
