RB080AR-40 Series

RASMID™ Series, Low VF, 40V, 4A, SMD2012, Schottky Barrier Diode

Catalog

RASMID™ Series, Low VF, 40V, 4A, SMD2012, Schottky Barrier Diode

Part	Capacitance @ Vr, F	Technology	Mounting Type	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Speed

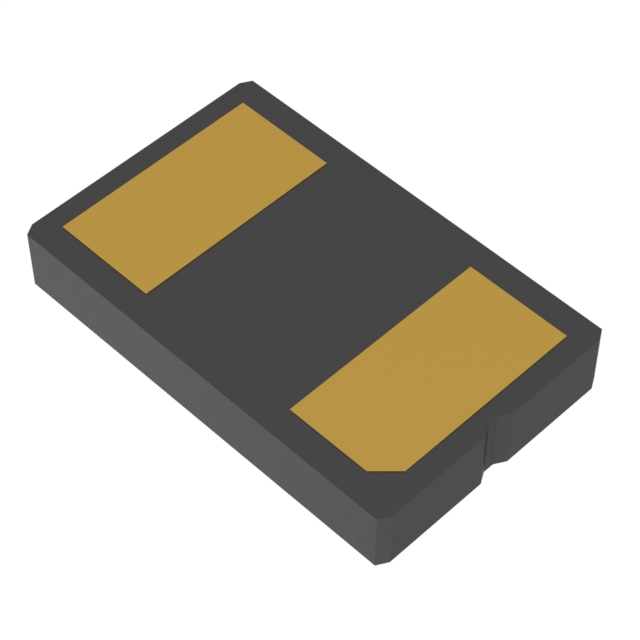

Rohm Semiconductor RB080AR-40T7R	110 pF	Schottky	Surface Mount	0805	DSN2012-2	40 V	150 °C	25 ns	200 µA	4 A	630 mV	200 mA 500 ns

RASMID™ Series, Low VF, 40V, 4A, SMD2012, Schottky Barrier Diode

• High reliability, Wafer level chip size package, Low VF

RB080AR-40 is the high reliability schottky barrier diode with low VFfor general rectification.
