G-ESSWU Series

Catalog

CABLE GLANDS, STRAIN RELIEFS & CORD GRIPS ATEX/EX CABLE GLAND 9.5MM-15.9MM M20

Part	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Material	Ingress Protection	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Thread Size	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]

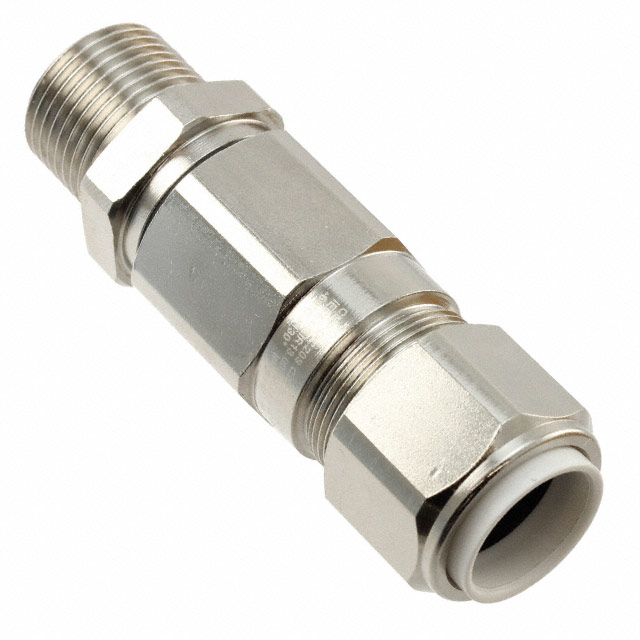

Phoenix Contact 1411088	O-Ring Seal	-60 °C	130 °C	Brass Nickel Plated	IP66 IP67 IP68	Cable Gland	9.5 mm	0.374 in	Silver	0.626 in	15.9 mm	M20	0.591 in	15 mm

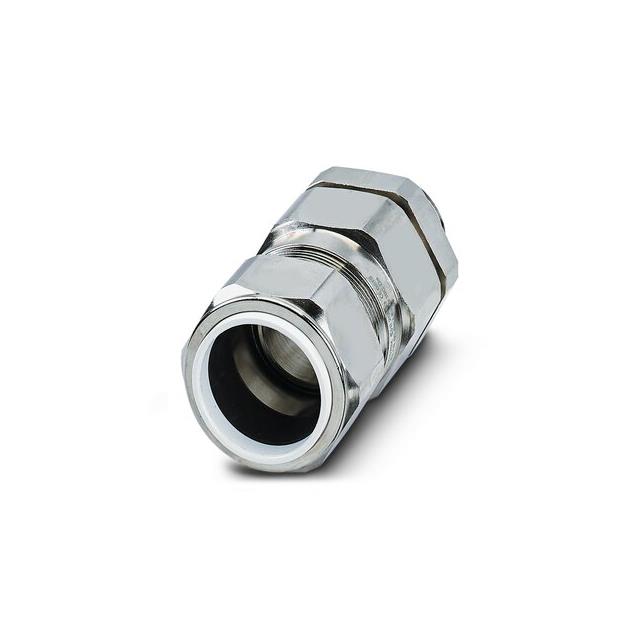

Phoenix Contact 1411090	O-Ring Seal	-60 °C	130 °C	Brass Nickel Plated	IP66 IP67 IP68	Cable Gland			Silver			M20	0.591 in	15 mm	0.492 in	12.5 mm	20.9 mm	0.823 in

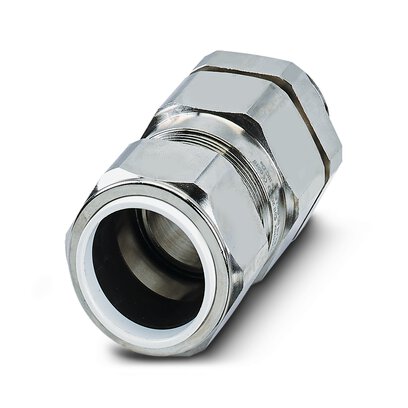

Phoenix Contact 1411094	O-Ring Seal	-60 °C	130 °C	Brass Nickel Plated	IP66 IP67 IP68	Cable Gland	23.7 mm	0.933 in	Silver			M32	0.591 in	15 mm			33.9 mm	1.335 in
Phoenix Contact 1411102	O-Ring Seal	-60 °C	130 °C	Brass Nickel Plated	IP66 IP67 IP68	Cable Gland			Silver			M63	0.591 in	15 mm	2.15 in	54.6 mm	65.9 mm	2.594 in
Phoenix Contact 1411100	O-Ring Seal	-60 °C	130 °C	Brass Nickel Plated	IP66 IP67 IP68	Cable Gland			Silver		53.1 mm	M50	0.591 in	15 mm	1.591 in	40.4 mm		2.091 in
