TLynx Series

Catalog

NON-ISOLATED DC/DC CONVERTERS 0.8 2.75V AT 30A

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Features	Type	Control Features	Applications	Approval Agency	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]

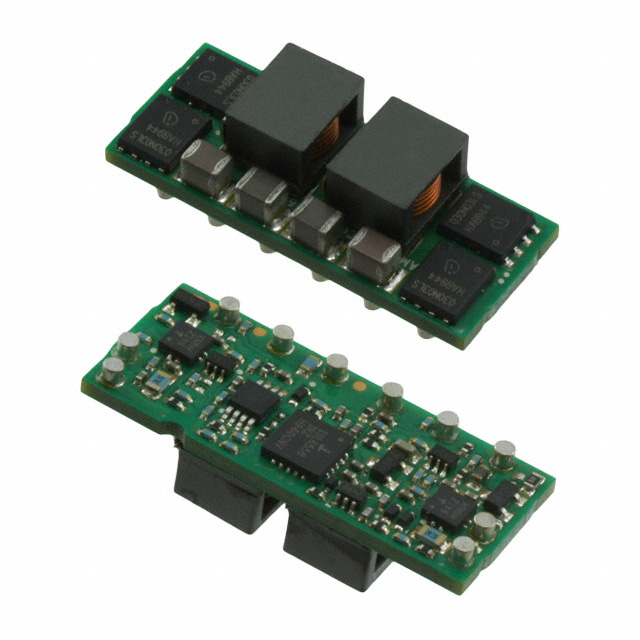

OmniOn Power™ APTS030A0X3-SRPHZ	30 A	6 V	14 V	82 W	85 °C	-40 C	Surface Mount	1	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module	Active Low Enable	ITE (Commercial)	CSA UL VDE	Module	2.75 V	0.8 V	91.8 %
OmniOn Power™ APTS030A0X3-SRPHZ	30 A	6 V	14 V	82 W	85 °C	-40 C	Surface Mount	1	OCP OTP Remote On/Off UVLO	Non-Isolated PoL Module	Active Low Enable	ITE (Commercial)	CSA UL VDE	Module	2.75 V	0.8 V	91.8 %

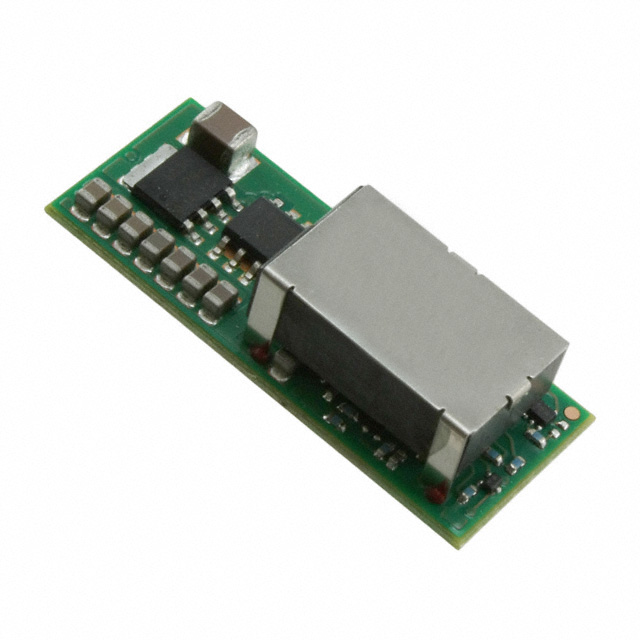

OmniOn Power™ APTS020A0X3-SRZ	20 A	4.5 V	14 V	110 W	85 °C	-40 C	Surface Mount	1	OCP OTP OVP Remote On/Off UVLO	Non-Isolated PoL Module	Active Low Enable	ITE (Commercial)		10-SMD Module	5.5 V	0.7 V	92 %	8.5 mm	1.3 in	33 mm	0.33 in	13.5 mm	0.53 in
OmniOn Power™ APTS020A0X3-SRZ	20 A	4.5 V	14 V	110 W	85 °C	-40 C	Surface Mount	1	OCP OTP OVP Remote On/Off UVLO	Non-Isolated PoL Module	Active Low Enable	ITE (Commercial)		10-SMD Module	5.5 V	0.7 V	92 %	8.5 mm	1.3 in	33 mm	0.33 in	13.5 mm	0.53 in
