1241.6964 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

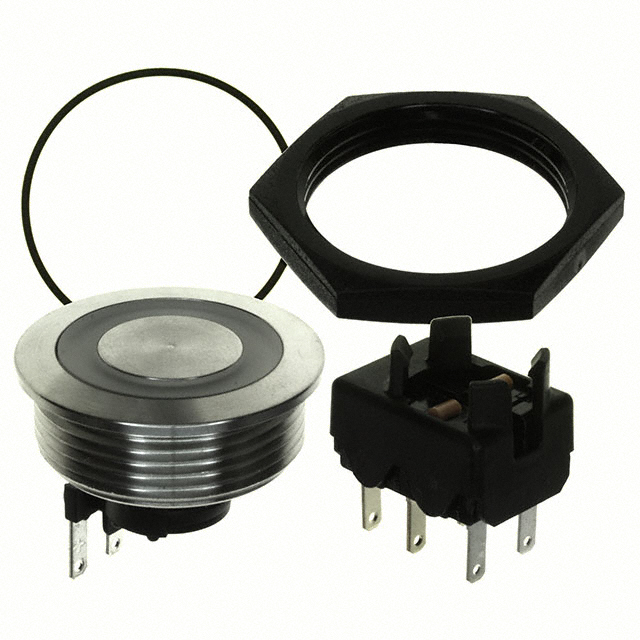

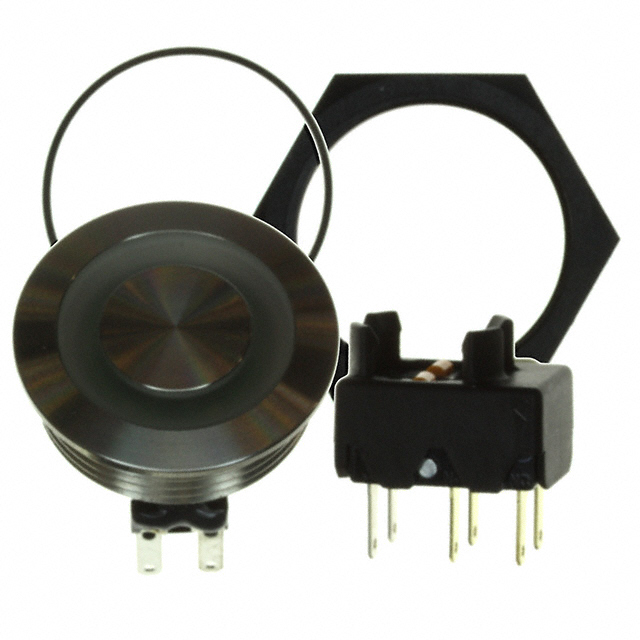

SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Switch Function | Termination Style | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Color - Actuator/Cap | Ingress Protection | Actuator Type | Actuator Marking | Mounting Type | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 125 V | Anti-Vandal Illuminated | 30.1 mm | 5 A | On-Mom | Quick Connect - 0.110" (2.8mm) | DPDT | 85 °C | -25 °C | 24 V | Silver | IP40 | Button Flush Round | No Marking | Panel Mount Front | LED Red |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 125 V | Anti-Vandal Illuminated | 30.1 mm | 5 A | On-Mom | Quick Connect - 0.110" (2.8mm) | DPDT | 85 °C | -25 °C | 24 V | Silver | IP40 | Button Flush Round | No Marking | Panel Mount Front | Blue LED |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 125 V | Anti-Vandal Illuminated | 30.1 mm | 5 A | On-Mom | Quick Connect - 0.110" (2.8mm) | DPDT | 85 °C | -25 °C | 24 V | Silver | IP40 | Button Flush Round | No Marking | Panel Mount Front | Green LED |
