RT8086 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

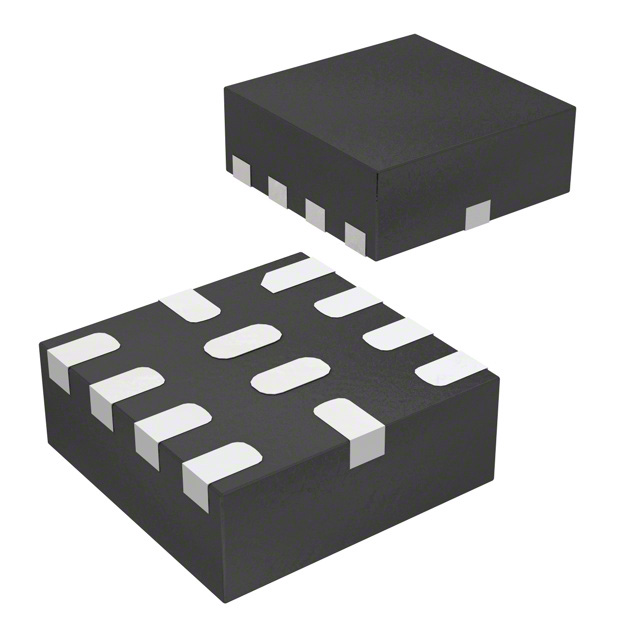

IC REG BUCK ADJ 3.5A 12UQFN
| Part | Number of Outputs | Mounting Type | Current - Output | Function | Voltage - Output (Max) [Max] | Output Type | Frequency - Switching | Output Configuration | Package / Case | Supplier Device Package | Synchronous Rectifier | Voltage - Input (Max) [Max] | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Voltage - Input (Min) [Min] | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Utilized IC / Part | Main Purpose | Contents | Voltage - Output | Regulator Topology | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | Surface Mount | 3.5 A | Step-Down | 3.3 V | Adjustable | 1.2 MHz | Positive | 12-PowerUFQFN | 12-UQFN (2x2) | 5.5 V | Buck | 85 C | -40 ¯C | 0.6 V | 2.8 V | ||||||||||||

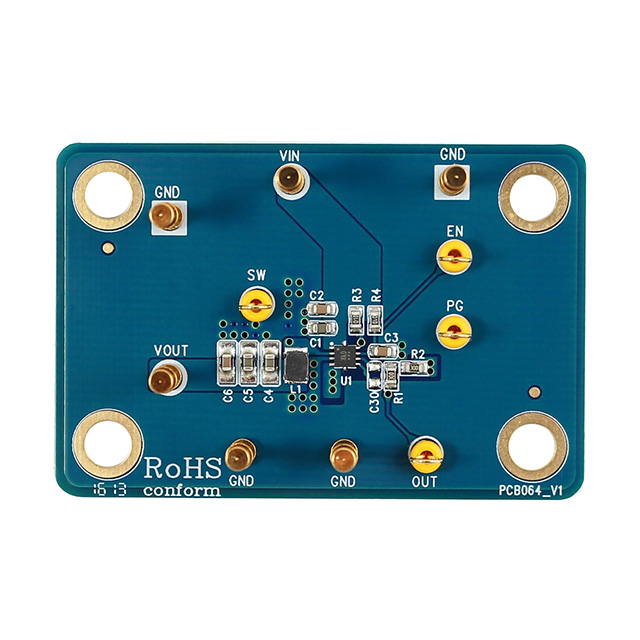

 Richtek USA Inc. | 3.5 A | 1.2 MHz | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | RT8086B | DC/DC Step Down | Board(s) | 1.2 V | Buck | 2.8 V | 5.5 V |
