BD450S2FP3-C Series

Automotive 200mA 5.0V, Fixed Output LDO Regulators

Catalog

Automotive 200mA 5.0V, Fixed Output LDO Regulators

Part	Output Configuration	Current - Quiescent (Iq)	Current - Supply (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Protection Features	Supplier Device Package	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Grade	Qualification	Number of Regulators	Voltage Dropout (Max) [Max]	PSRR

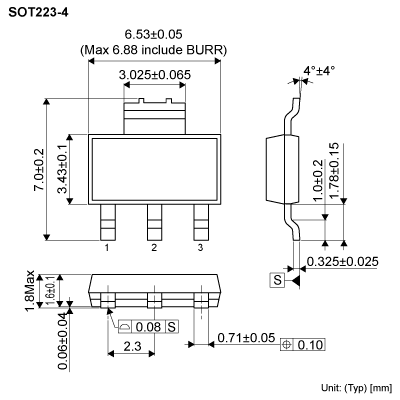

Rohm Semiconductor BD450S2FP3-CE2	Positive	90 çA	150 µA	-40 °C	150 °C	0.2 A	Over Current Over Temperature Short Circuit	SOT-223-4	5 V	Surface Mount	42 V	TO-261-4 TO-261AA	Automotive	AEC-Q100	1	0.35 V	65 dB

Catalog

Automotive 200mA 5.0V, Fixed Output LDO Regulators

Description

The BD4xxS2-C series are low quiescent regulators featuring 45V absolute maximum voltage, and output voltage accuracy of ±2% (3.3V or 5.0V: Typ), 200mA output current and 40µA (Typ) current consumption. These regulators are therefore ideal for applications requiring a direct connection to the battery and a low current consumption. A logical "HIGH" at the CTL pin enables the device and "LOW" at the CTL pin not enables the device. (Only W: Includes switch) Ceramic capacitors can be used for compensation of the output capacitor phase. Furthermore, these ICs also feature overcurrent protection to protect the device from damage caused by short-circuiting and an integrated thermal shutdown to protect the device from overheating at overload conditions.
