BGDCS8PM Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

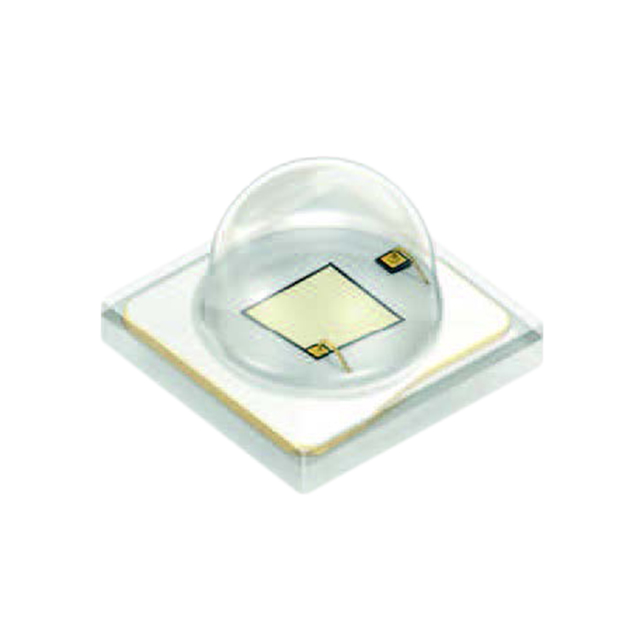

LED OSLON SSL80 BLUE 455NM SMD
| Part | Thermal Resistance of Package | Current - Test | Voltage - Forward (Vf) (Typ) | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature | Temperature - Test | Wavelength | Viewing Angle | Package / Case | Package / Case | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 8.2 °C/W | 350 mA | 2.85 V | 658 mW | 763 mW | 711 mW | 25 °C | 455 nm | 80 ° | 3030 Metric | 1212 | SMD | 2.31 mm | 0.091 in | Blue | 3 mm | 0.118 in | 3 mm | 0.118 " | 1 A | Surface Mount |
