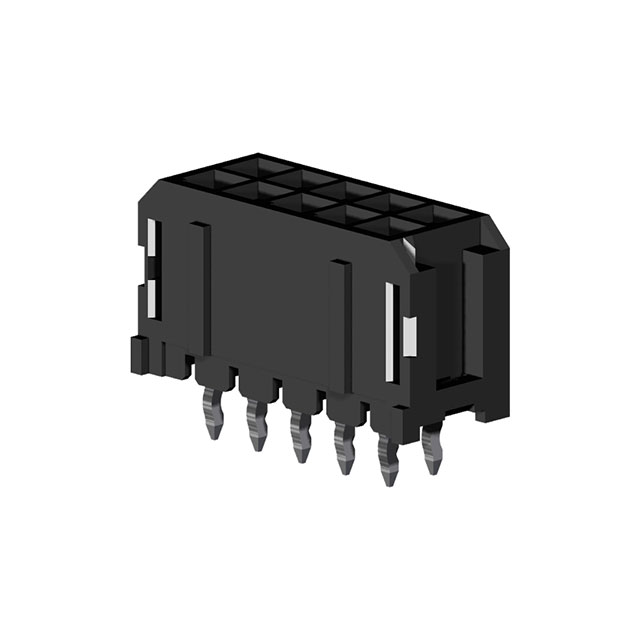

CP3516P1 Series
Manufacturer: Cvilux USA
Beta
⌘K
16 POS 3.00MM(.118) DUAL ROWS VE
| Part | Voltage Rating | Number of Rows [custom] | Shrouding | Fastening Type | Mounting Type | Number of Positions Loaded | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Features | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Height [z] | Insulation Height [z] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Style | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Contact Finish - Post | Contact Shape | Termination | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | 600 VAC | 2 | Shrouded - 4 Wall | Locking Ramp | Through Hole | All | 16 | 0.118 in | 3 mm | 7 A | Board Guide | 3 mm | 0.118 in | Male Pin | 0.39 in | 9.91 mm | Plug | -40 C | 105 ░C | Board to Cable/Wire | Brass | 0.126 " | 3.2 mm | Plastic Halogen Free | Tin | Square | Kinked Pin Solder | Black |
