ALCOSWITCH DIP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE DIP SPST 0.025A 50V

Part	Actuator Type	Actuator Level	Termination Style	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish	Mounting Type	Number of Positions	Circuit	Current Rating (Amps)	Contact Material	Electrical Life	Mechanical Life	Length [x]	Length [x]	Body Material	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]	Features	Pitch	Pitch

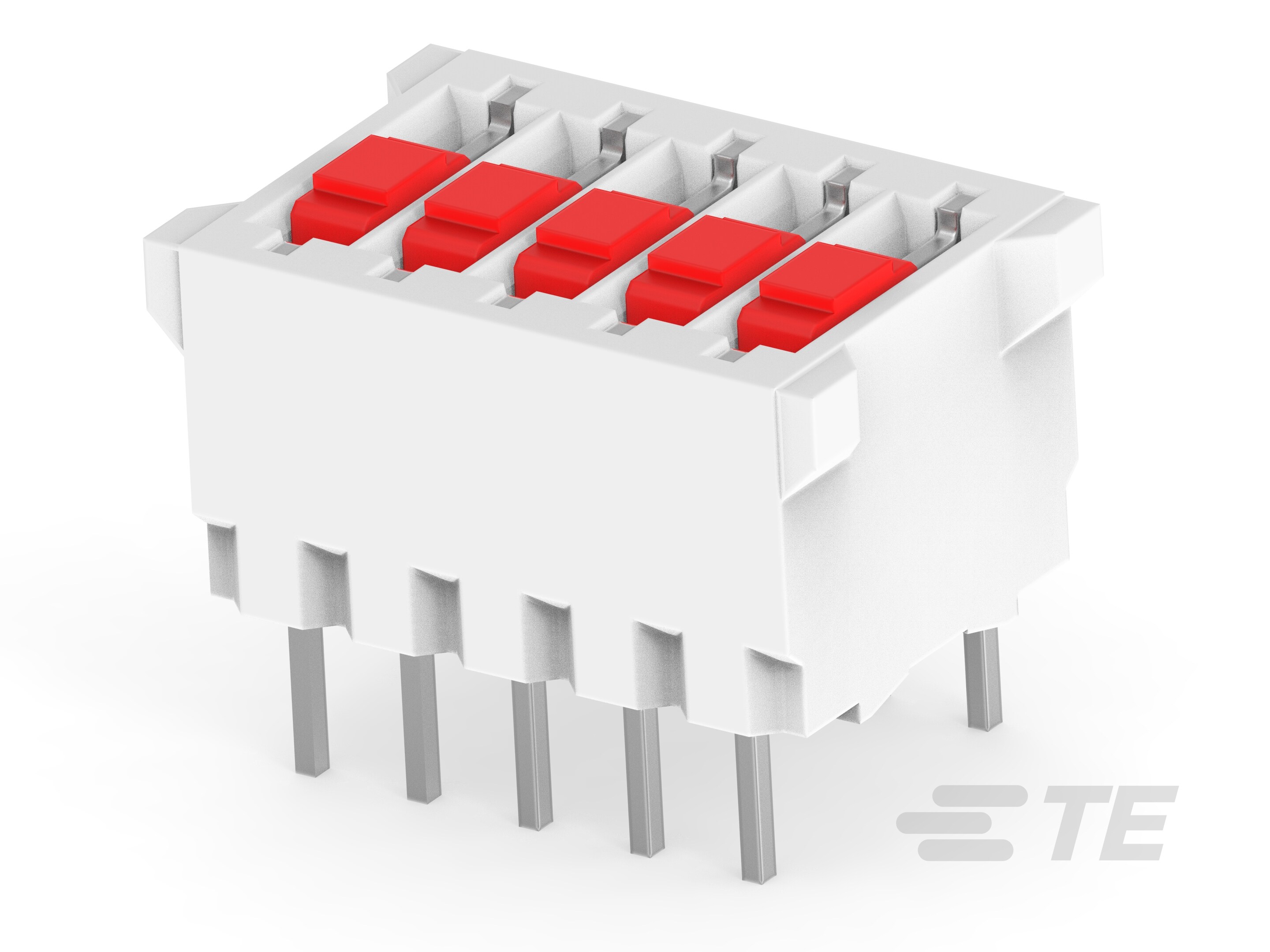

TE Connectivity AMP Connectors 5161390-5	Slide (Standard)	Raised	PC Pin	2.54 mm	0.1 "	-25 °C	70 °C	50 V	Tin	Through Hole	5	SPST	25 mA	Phosphor Bronze
TE Connectivity AMP Connectors 3-1825033-1	Rotary with Knob	Raised	PC Pin	2.54 mm	0.1 "	-30 ░C	85 °C	20 VAC/DC	Gold	Through Hole	16	Hexadecimal		Copper Alloy	20000 Steps	20000 Cycles	0.394 in	10 mm	Polyphenylene Sulfide (PPS)	9.8 mm	0.386 in
TE Connectivity AMP Connectors 1-5161390-8
TE Connectivity AMP Connectors 1825007-1	Rotary for Tool	Flush Recessed	PC Pin	2.54 mm	0.1 "	-30 ░C	85 °C	20 VAC/DC	Gold	Through Hole	10	BCD Complement		Copper Alloy	10000 Cycles	10000 Steps	0.394 in	10 mm	Polyphenylene Sulfide (PPS)			6.5 mm	0.256 in
TE Connectivity AMP Connectors GDH02SATR04	Slide (Standard)	Flush Recessed	J Lead	1.27 mm		-30 ░C	85 °C	24 VDC	Gold	Surface Mount	2	SPST	25 mA	Copper Alloy	1000 Cycles	1000 Cycles	0.144 in	3.67 mm	Polyphenylene Sulfide (PPS)	2.35 mm	0.093 in			Tape Seal	0.05 "	Half
TE Connectivity AMP Connectors 1-1825006-7	Standard	Flush Recessed								Through Hole	10	SPST
TE Connectivity AMP Connectors 1-1825007-3	Rotary for Tool	Flush Recessed	Gull Wing	2.54 mm	0.1 "	-30 ░C	85 °C	20 VAC/DC	Gold	Surface Mount	16	Hexadecimal Complement		Copper Alloy								7.39 mm	0.291 in
TE Connectivity AMP Connectors 5-1571999-9	Piano	Raised	PC Pin	2.54 mm	0.1 "	-30 ░C	85 °C	24 VDC	Gold	Through Hole	9	SPST	25 mA	Copper Alloy								6 mm	0.236 in

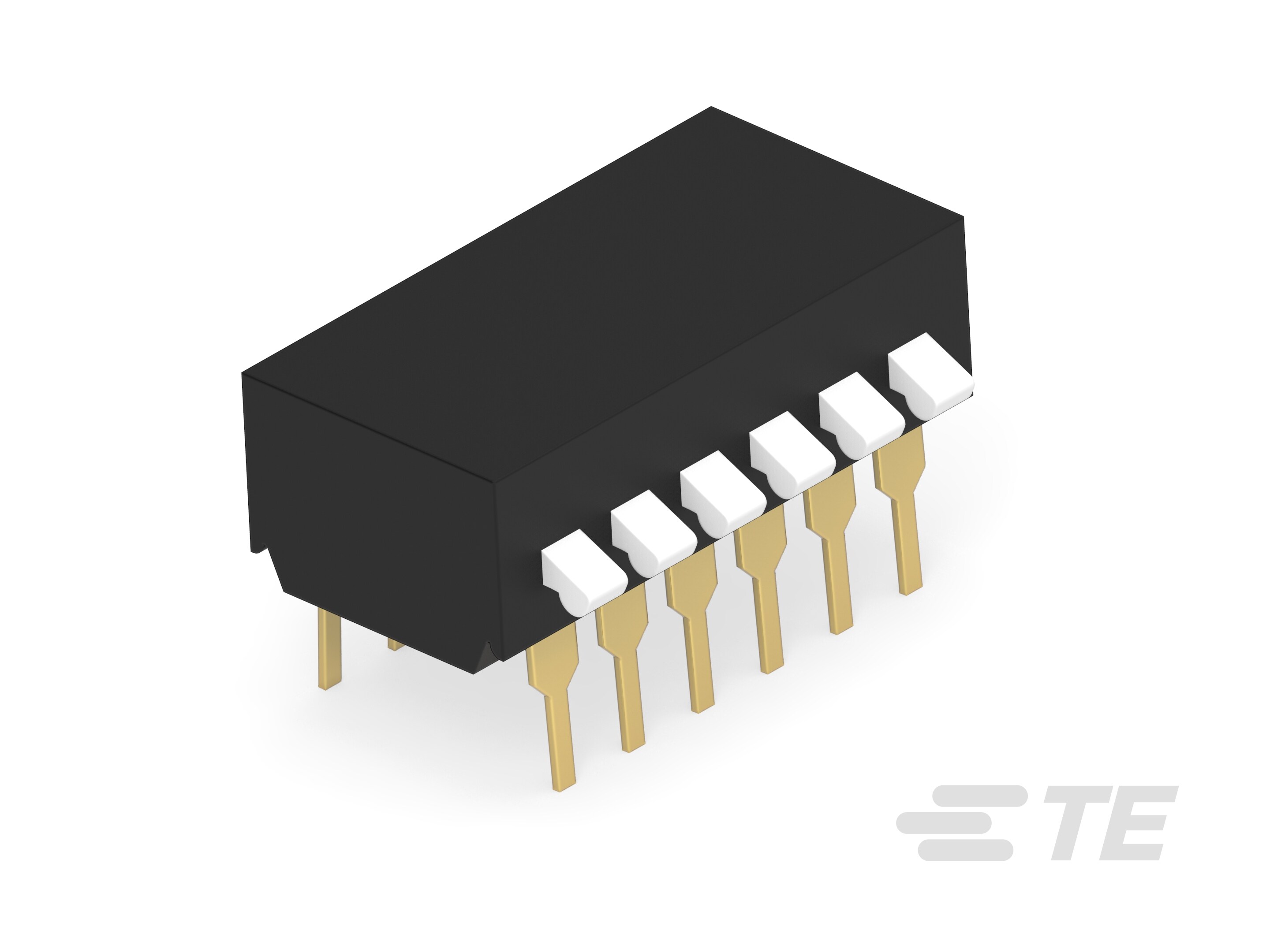

TE Connectivity AMP Connectors 5-1571999-0	Piano	Raised								Through Hole	6	SPST
TE Connectivity AMP Connectors 4-1571999-2	Piano	Raised								Surface Mount	2	SPST
