L77DA15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

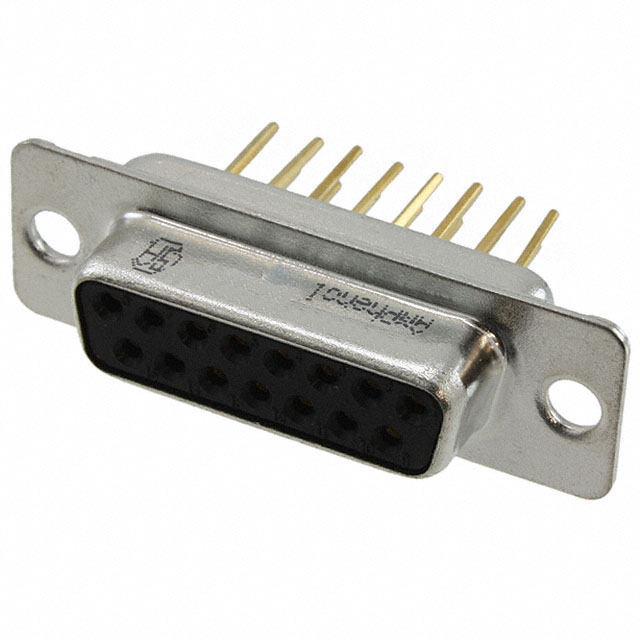

CONN D-SUB RCPT 15POS VERT SLDR
| Part | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Finish | Material Flammability Rating | Number of Rows [custom] | Contact Type | Number of Positions | Connector Style | Connector Type | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Flange Feature | Current Rating (Amps) | Termination | Backset Spacing | Backset Spacing | Features | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | ||||
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | ||||
 Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Panel Mount Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Wire Wrap | ||||
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Plug Male Pins | 2 | 0.203 çm | 8 µin | Right Angle Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | 10.3 mm | 0.406 in | Grounding Indents Mounting Brackets | |
 Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.38 µm | 15 µin | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | 7.5 A | Screw | 18 AWG | |||
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Right Angle Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | 10.3 mm | 0.406 in | Mounting Brackets | |
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | ||||
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Right Angle Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | 10.3 mm | 0.406 in | Mounting Brackets | |
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | ||||
Amphenol ICC (Commercial Products) | Brass | 300 VDC | -55 C | 125 °C | Black | Thermoplastic Glass Filled | Gold | UL94 V-0 | 2 | Signal | 15 | D-Sub | Receptacle Female Sockets | 2 | 0.203 çm | 8 µin | Right Angle Through Hole | Housing/Shell (Unthreaded) | 7.5 A | Solder | 8.1 mm | 0.319 in | Mounting Brackets |
