SN74AC245-Q1 Series

Automotive octal bus transceiver with 3-state outputs

Catalog

Automotive octal bus transceiver with 3-state outputs

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Bits per Element	Number of Elements	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Package / Case	Supplier Device Package	Current - Output High, Low

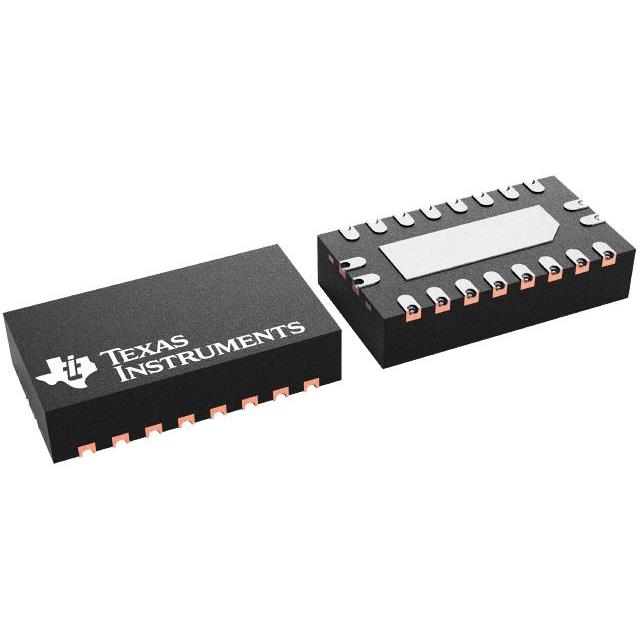

Texas Instruments SN74AC245WRKSRQ1	1.5 V	6 V	Surface Mount Wettable Flank	8	1	-40 °C	125 °C	3-State	20-VFQFN Exposed Pad	20-VQFN (2.5x4.5)	24 mA

Catalog

Automotive octal bus transceiver with 3-state outputs

Key Features

• AEC-Q100 qualified for automotive applications:Device temperature grade 1: -40°C to +125°CDevice HBM ESD classification level 2Device CDM ESD classification level C4BAvailable in wettable flank QFN (RKS) packageWide operating range of 1.5V to 6VInputs accept voltages up to 6VContinuous ±24mA output drive at 5VSupports up to ±75mA output drive at 5Vin short burstsDrives 50Ω transmission linesAEC-Q100 qualified for automotive applications:Device temperature grade 1: -40°C to +125°CDevice HBM ESD classification level 2Device CDM ESD classification level C4BAvailable in wettable flank QFN (RKS) packageWide operating range of 1.5V to 6VInputs accept voltages up to 6VContinuous ±24mA output drive at 5VSupports up to ±75mA output drive at 5Vin short burstsDrives 50Ω transmission lines

Description

The SN74AC245-Q1 is an octal bus transceiver with 3-state outputs. All eight channels are controlled by the direction (DIR) pin and output enable (OE) pin. The SN74AC245-Q1 is an octal bus transceiver with 3-state outputs. All eight channels are controlled by the direction (DIR) pin and output enable (OE) pin.
