L2-PGW3 Series
Manufacturer: Bivar Inc.
Beta
⌘K

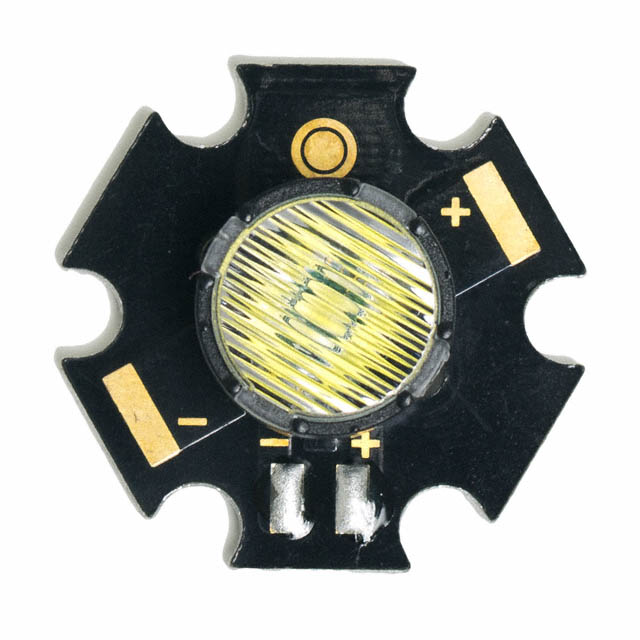

LED MOD L2 XLAMP STARBRD 3100K
| Part | Lumens/Watt @ Current - Test | Size / Dimension [x] | Size / Dimension [y] | Configuration | Viewing Angle | Type | Color | Luminous Flux @ Current/Temperature | CRI (Color Rendering Index) | Temperature - Test | Voltage - Forward (Vf) (Typ) | CCT (K) | Lens Type | Current - Test | Height [z] | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bivar Inc. | 77 lm/W | 19.9 mm | 19.9 mm | Starboard | 25 ° 45 ° | LED Module | Warm White | 80 lm | 80 | 70 °C | 2.95 V | 3100 K | Flat | 350 mA | 8.7 mm | 1.5 A |
