FN9255 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Ingress Protection	Termination	Material Flammability Rating	Features	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Connector Type	Filter Type	Current Rating - Filter	Approval Agency	Termination	Termination

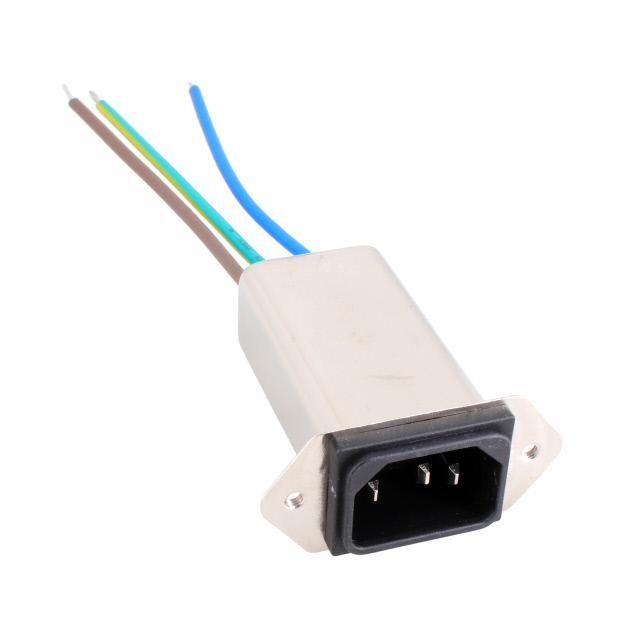

TE Connectivity AMP Connectors FN9255M-4-07	IP40	Wire Leads	UL94 V-0	Rear Side Mount	IEC 320-C14	30.4 mm	22.9 mm	Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	4 A	CE CQC ENEC UR

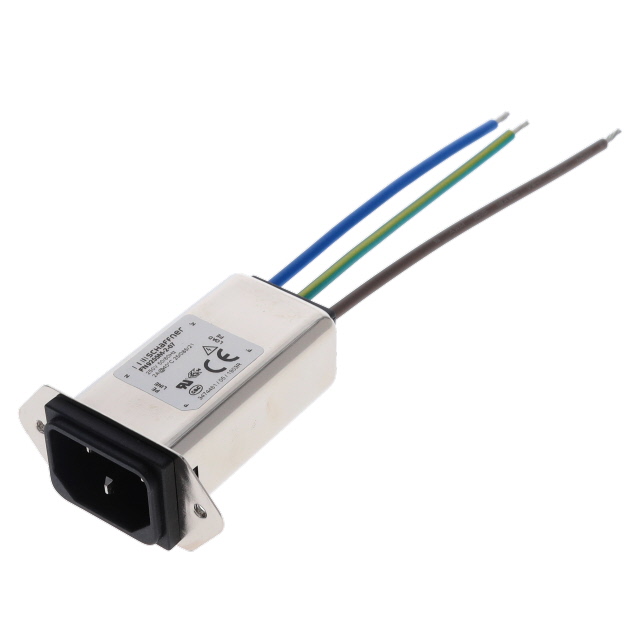

TE Connectivity AMP Connectors FN9255M-2-07	IP40	Wire Leads	UL94 V-0	Rear Side Mount	IEC 320-C14	30.4 mm	22.9 mm	Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	10 A	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255MB-6-06	IP40	Quick Connect	UL94 V-0	Rear Side Mount	IEC 320-C14	30.4 mm	22.9 mm	Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial Medical	6 A	CE CQC ENEC UR	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9255-10-07	IP40	Wire Leads	UL94 V-0	Front Side Mount	IEC 320-C14			Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	10 A	CE CQC ENEC UR

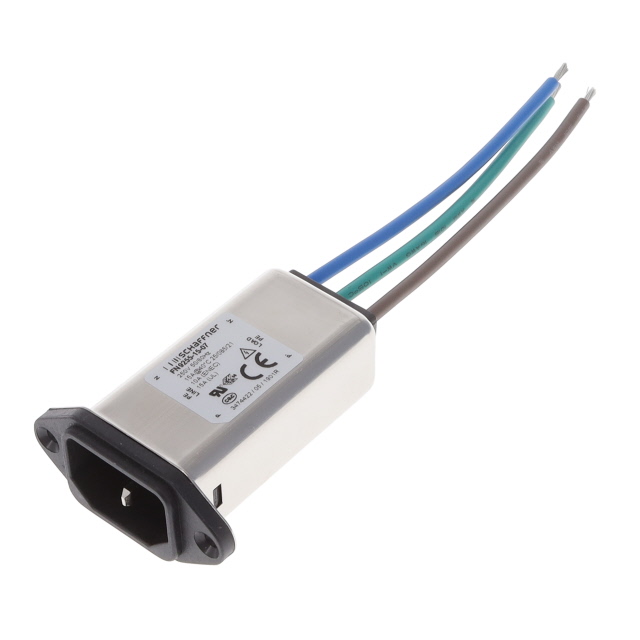

TE Connectivity AMP Connectors FN9255-15-07	IP40	Wire Leads	UL94 V-0	Front Side Mount	IEC 320-C14			Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	15 A	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255-20-06	IP40	Quick Connect	UL94 V-0	Front Side Mount	IEC 320-C20	34.9 mm	27.1 mm	Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	10 A	CE CQC ENEC UR	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9255-15-06	IP40	Quick Connect	UL94 V-0	Front Side Mount	IEC 320-C14			Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	15 A	CE CQC ENEC UR	6.3 mm	0.25 "

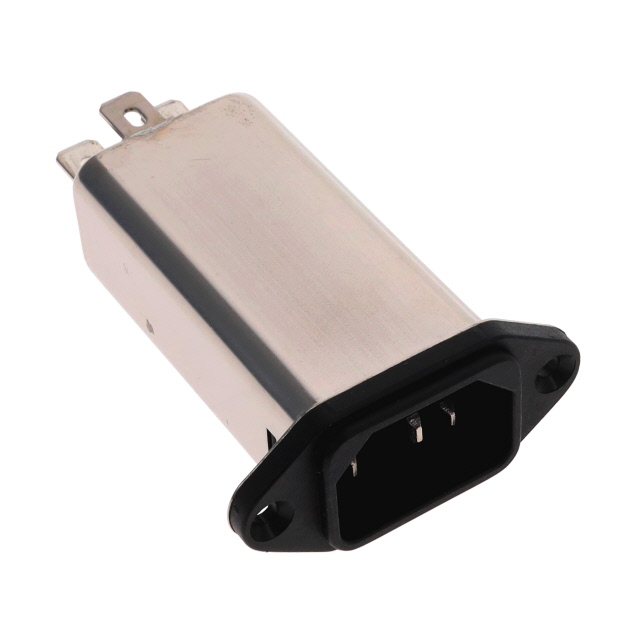

TE Connectivity AMP Connectors FN9255-10-06	IP40	Quick Connect	UL94 V-0	Front Side Mount	IEC 320-C14			Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	10 A	CE CQC ENEC UR	6.3 mm	0.25 "
TE Connectivity AMP Connectors FN9255-16-07	IP40	Wire Leads	UL94 V-0	Front Side Mount	IEC 320-C20	34.9 mm	27.1 mm	Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	10 A	CE CQC ENEC UR
TE Connectivity AMP Connectors FN9255-10-07	IP40	Wire Leads	UL94 V-0	Front Side Mount	IEC 320-C14			Flange Panel Mount	Receptacle Male Blades	Filtered (EMI RFI) - Commercial	10 A	CE CQC ENEC UR
